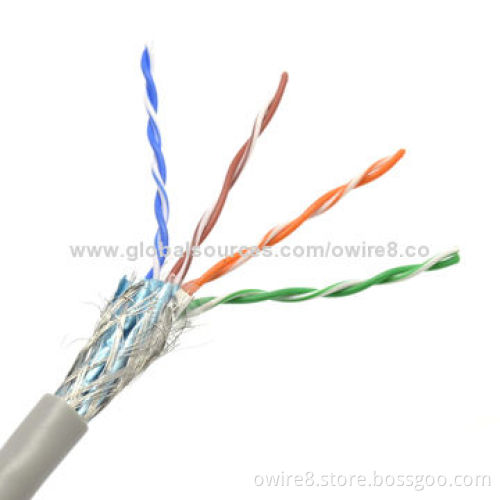

STP Cat5 Cable, Braiding Shiled, 60 or 75°C Rated Temperature

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Features:

Applications:

Packing: 305m/carton

Specification: 4P + Mylar + AL + B

Rated temperature: 60 or 75℃

Unshielded twisted pairs

Conductor: 26 or 24AWG stranding or solid bare copper

Insulation: HD-PE

Inner shielded: AL-Mylar 100%(min) coverage

Outer shielded: 36AWG tinned copper or AL-MG braid 45% (minimum) coverage

Jacket: PVC or LSNH

Impedance:100 ± 15%Ω at 1-100MHz

Reference certificates: YD/T1019-2001, IEC11801, ANSI/TIA/EIA-568B, UL 444

Print legend: CM or CMR

Fast and reliable connection

Twisted pairs with bright color for easy to recognition

Ripcord and footmark for convenient use

Smooth jacket for easy pulling in tight space

Colors in light gray, dark gray, blue, white or as per your requirements

Computer network cabling project

Broadband network communication

Digital ISDN network and ATM 155Mbps network

Ethernet network

Audio and data transmission
