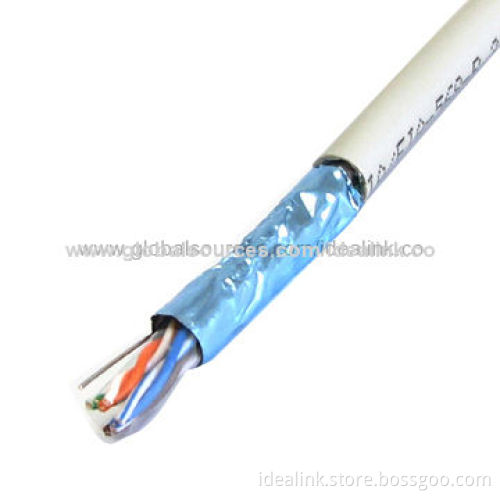

Cat5e FTP 24AWG Shield Networking Cable, Solid Bare Copper/CCA/CCS Conductor

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Conductor: solid bare copper
Conductor diameter: 24AWG
Insulation: PE
Average thickness: 0.25mm (±0.03mm)
Minimum point thickness: 0.22mm
Insulation diameter: 1.00mm (±0.03mm)
Twisting lay length: 30mm
Cabling lay length: 200mm
Jacket: PVC/LSZH
Average thickness: 0.5mm
Minimum point thickness: 0.46mm
Outer diameter: 5.1mm (±1.00mm)
Rip cord: supported
Core colors:
- Pair 1: blue-white/blue
- Pair 2: orange-white/orange
- Pair 3: green-white/orange
- Pair 4: brown-white/brown
Conductor: solid bare copper/CCS/CCA
AWG: 23/24
Insulation: foam PE/solid PE
OEM orders are welcomed

Electrical performance (at 250MHz):

Independence delay screw: <45ns/100m
Pair to ground capacitance unbalance: 330pF/100m (maximum)
Conductor DC resistance: 20% (©/km), <93.8
Resistance unbalance: 5%
Test object: jacket
Test material: PVC
Before tensile strength: 13.8MPa
Aging elongation: 100%
Aging condition: 100°C x 240 hours
After tensile strength: 85%MPa
Aging elongation: 50% of nagged
Cold bend: -20 ± 2°C x 4 hours (no crock)

Standard compliance:

All proposed category 5e requirements as per ANSI/TIA/EIA, IEC and CENELEC EN standards
ANSI/TIA/EIA 568-B.2 cat5e
IEC 11801 class D 2nd edition
CENELEC EN50173-1
CENELEC EN61156-5, CENELEC EN50288-2-1 horizontal cable
Flame redundancy is verified according to IEC60332-1

Applications:

This 4-pair category 5e cable is tested for power sum next, delay skew
Propagation delay and any other criteria as specified in the emerging standard
Applications can include voice, ISDN, ATM 155 and 622, 100MbpsTPDDI, fast and Gigabit Ethernet
Shielding protects against EMI/RFI interference

Packing:

Type: wooden roller

Conductor: solid bare copper

Conductor diameter: 24AWG

Insulation: PE

Average thickness: 0.25mm (±0.03mm)

Minimum point thickness: 0.22mm

Insulation diameter: 1.00mm (±0.03mm)

Twisting lay length: 30mm

Cabling lay length: 200mm

Jacket: PVC/LSZH

Average thickness: 0.5mm

Minimum point thickness: 0.46mm

Outer diameter: 5.1mm (±1.00mm)

Rip cord: supported

Core colors:

Pair 1: blue-white/blue
Pair 2: orange-white/orange
Pair 3: green-white/orange
Pair 4: brown-white/brown

Conductor: solid bare copper/CCS/CCA

AWG: 23/24

Insulation: foam PE/solid PE

OEM orders are welcomed

Pair 1: blue-white/blue

Pair 2: orange-white/orange

Pair 3: green-white/orange

Pair 4: brown-white/brown

Independence delay screw: <45ns/100m

Pair to ground capacitance unbalance: 330pF/100m (maximum)

Conductor DC resistance: 20% (©/km), <93.8

Resistance unbalance: 5%

Test object: jacket

Test material: PVC

Before tensile strength: 13.8MPa

Aging elongation: 100%

Aging condition: 100°C x 240 hours

After tensile strength: 85%MPa

Aging elongation: 50% of nagged

Cold bend: -20 ± 2°C x 4 hours (no crock)

All proposed category 5e requirements as per ANSI/TIA/EIA, IEC and CENELEC EN standards

ANSI/TIA/EIA 568-B.2 cat5e

IEC 11801 class D 2nd edition

CENELEC EN50173-1

CENELEC EN61156-5, CENELEC EN50288-2-1 horizontal cable

Flame redundancy is verified according to IEC60332-1

This 4-pair category 5e cable is tested for power sum next, delay skew

Propagation delay and any other criteria as specified in the emerging standard

Applications can include voice, ISDN, ATM 155 and 622, 100MbpsTPDDI, fast and Gigabit Ethernet

Shielding protects against EMI/RFI interference

Type: wooden roller
