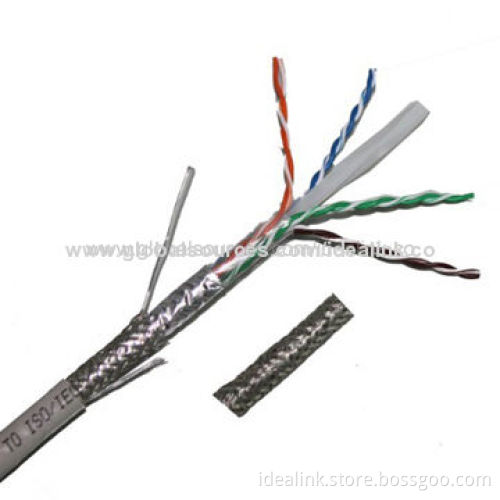

LAN Cable with Foam and Skin PE Insulation, Supports Various Conductor Materials

LAN Cable with Foam and Skin PE Insulation, Supports Various Conductor Materials

Get Latest Price

Payment Type:: T/T, Western Union, L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, L/C at Sight

Product Description

Descriptions:

Conductor: solid bare copper
AWG: 23
Conductor diameter: 0.583 ±0.02mm
Insulation: skin PE
Average thickness (±0.03mm): 0.419mm
Minimum point thickness: 0.369mm
Jacket: PVC/LSZH
Sheath diameter: 7.4 ±0.3mm
Elongation: 100%
Tensile strength: 1.407kg/mm
Aging at 100 for 168 hours
Elongation retention: 50% (minimum)
Point thickness: minimum elongation strength retention is 75% (minimum)
Rip cord: supported

Core colors:

Pair 1: blue white/blue
Pair 2: orange white/orange
Pair 3: green white/green
Pair 4: brown white/brown

Specifications:

Cat6 SFTP LAN cable electrical performance (at 250MHz):
Spark test: 1,050V (AV)
Dielectric strength: 2,500V DC/3 seconds
Insulation resistance test: 150MΩ/km
Conductor resistance: 9.38/100m at 20°
Resistance unbalance: 2%
Capacitance unbalance: 330pF/100m
Mutual capacity: 5,600pF/100m
Impedance: 64kHz, 125Ω ±20%
1 to 250MHz, 100Ω ±15%

Applications:

1,000Base-T gigabit Ethernet
100Base-T, 100Base-T fast Ethernet (IEEE802.3)
100VG-any LAN (IEEE 802.12), 155/622Mbps ATM
Voice, T1, ISDN
550MHz broadband video

Compliant with LAN cable standards:

All proposed category 6 requirements as per ANSI/TIA/EIA, IEC and cenelec EN standards
ANSI/TIA/EIA 568-B.2-1 Cat6
IEC 11801 class E 2nd edition
Cenelec EN 61156-6
Cenelec EN 50173-1
Cenelec EN 50288-5-1
Cenelec EN 50288-5-2
Flame-retardant is verified according to IEC 60332-1-2

OEM service:

Customized as per your requirements:
- Conductor: solid bare copper/CCS/CCA
- AWG: 23/24
- Insulation: foam PE/solid PE
- Braiding: 64/96/112/128
- Jacket: PVC/LSZH
Packaging: wooden roller

Conductor: solid bare copper

AWG: 23

Conductor diameter: 0.583 ±0.02mm

Insulation: skin PE

Average thickness (±0.03mm): 0.419mm

Minimum point thickness: 0.369mm

Jacket: PVC/LSZH

Sheath diameter: 7.4 ±0.3mm

Elongation: 100%

Tensile strength: 1.407kg/mm

Aging at 100 for 168 hours

Elongation retention: 50% (minimum)

Point thickness: minimum elongation strength retention is 75% (minimum)

Rip cord: supported

Pair 1: blue white/blue

Pair 2: orange white/orange

Pair 3: green white/green

Pair 4: brown white/brown

Cat6 SFTP LAN cable electrical performance (at 250MHz):

Spark test: 1,050V (AV)

Dielectric strength: 2,500V DC/3 seconds

Insulation resistance test: 150MΩ/km

Conductor resistance: 9.38/100m at 20°

Resistance unbalance: 2%

Capacitance unbalance: 330pF/100m

Mutual capacity: 5,600pF/100m

Impedance: 64kHz, 125Ω ±20%

1 to 250MHz, 100Ω ±15%

1,000Base-T gigabit Ethernet

100Base-T, 100Base-T fast Ethernet (IEEE802.3)

100VG-any LAN (IEEE 802.12), 155/622Mbps ATM

Voice, T1, ISDN

550MHz broadband video

All proposed category 6 requirements as per ANSI/TIA/EIA, IEC and cenelec EN standards

ANSI/TIA/EIA 568-B.2-1 Cat6

IEC 11801 class E 2nd edition

Cenelec EN 61156-6

Cenelec EN 50173-1

Cenelec EN 50288-5-1

Cenelec EN 50288-5-2

Flame-retardant is verified according to IEC 60332-1-2

Customized as per your requirements:

Conductor: solid bare copper/CCS/CCA
AWG: 23/24
Insulation: foam PE/solid PE
Braiding: 64/96/112/128
Jacket: PVC/LSZH

Packaging: wooden roller

Conductor: solid bare copper/CCS/CCA

AWG: 23/24

Insulation: foam PE/solid PE

Braiding: 64/96/112/128

Jacket: PVC/LSZH
