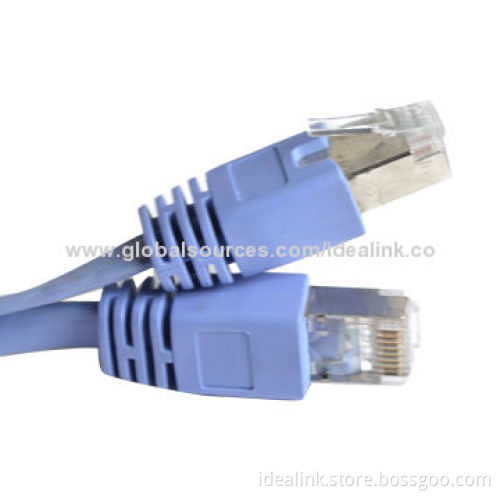

Cat5e FTP Patch Cord with Shield Color Code Patch Jumper Wire to Keystone Jack

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or L/C at Sight

Product Description

Features:

Conductor: 7 x 32AWG (7/0.2mm) copper
Path cord plug: shielded RJ45 plug
Boot: FR PVC high-injection
Jacket: PVC/LSZH
Nominal outer diameter: 5.5mm
Insulation: polyolefin
Color codes:
- Pair 1: white/blue and blue
- Pair 2: white/orange and orange
- Pair 3: white/green and green
- Pair 4: white/brown and brown
Length: 0.5, 1, 2, 3 and 5m (special length accepted by order)
Standard compliance:
- Standard: Cat 6 TIA/EIA-568-B-2.1, draft 9
- CE standard and RoHS Directive-compliant

OEM services are provided

Applications:

Improved attenuation provides cleaner data and video transmission
For 1000Base-T, 100Base-TX, 155Mbps ATM, and other high-speed applications
Designed for: network adapters, hubs, switches, routers, DSL/cable modems and patch panels
Snag-less patch cables you can stay ahead of the game with the use of this high-speed cabling to distribute data, voice and video
Will handle bandwidth intensive applications up to 550MHz and beyond
Constructed with high-quality cable and a shortened body plug
The molded, snag-free boot prevents unwanted cable snags during installation and provides strain-relief
Available in a variety of colors to easily color code network installation

Packaging: polybag

Conductor: 7 x 32AWG (7/0.2mm) copper

Path cord plug: shielded RJ45 plug

Boot: FR PVC high-injection

Jacket: PVC/LSZH

Nominal outer diameter: 5.5mm

Insulation: polyolefin

Color codes:
