Coaxial Cable with Messenger, CCTV and PVC Jacket, Copper/CCS Conductor, 1,000ft

Coaxial Cable with Messenger, CCTV and PVC Jacket, Copper/CCS Conductor, 1,000ft

Get Latest Price

Payment Type:: T/T, Western Union or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or L/C at Sight

Product Description

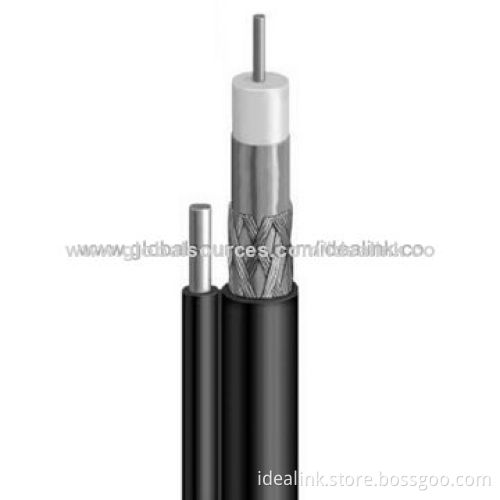

0.81mm bare copper (or CCS) + 3.66mm foamed PE + A/P (bonded) +60% Al braiding/copper braiding + 6.10mm PVC

Messenger: 1.13mm CCS (1.3mm steel)

Customized specifications are accepted

Center conductor: tinned copper, bare copper and copper clad steel are available

Aluminum foil: non-bonded aluminum foil, bonded aluminum foil, double bonded aluminum foil and double non-bonded aluminum foil are available

Braiding wire: aluminum, bare copper and tinned copper are available

Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm are available

Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more are available

Braiding coverage: between 30 to 97% are available

PVC jacket of flame-proof, UV or UL are available

Commonly uses 75© cable

Can be used in applications where cable assemblies must be built-in the field

Solid 18AWG center conductor results in a cable with very low-attenuation properties, 18AWG, copper covered steel wire insulated with HDPE, shield with 100% aluminum foil and 60% aluminum braiding, jacket material is UL-rated PVC

Customized requirements are accepted

Conductor: solid bare copper/copper clad steel

Conductor diameter: 0.81mm/more

Insulation: foam PE/solid PE

Foil: aluminum/copper

Messenger: 1.13mm CCS (1.3mm steel)/more

Braiding material: Al-mg/copper/Al

Braiding quantity: 64/96/112/128

Jacket: PVC/PE

Packaging: neutral/logo packaging

Packaging ways: 305/100m/more

Packaging style: wooden roller/more
