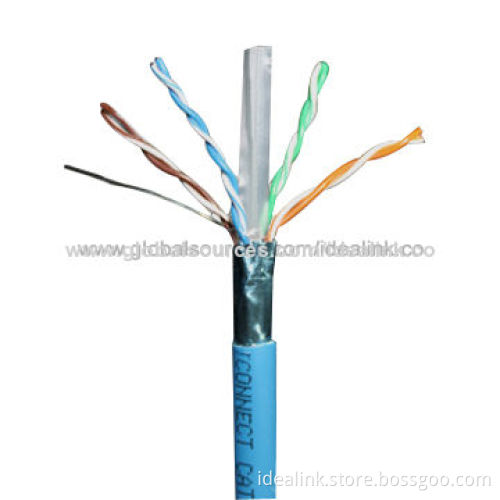

CAT6 FTP Network Cable, 23AWG Diameter with CU Conductor, Passed Fluke Test
  • CAT6 FTP Network Cable, 23AWG Diameter with CU Conductor, Passed Fluke Test
  • CAT6 FTP Network Cable, 23AWG Diameter with CU Conductor, Passed Fluke Test
CAT6 FTP Network Cable, 23AWG Diameter with CU Conductor, Passed Fluke Test
CAT6 FTP Network Cable, 23AWG Diameter with CU Conductor, Passed Fluke Test

CAT6 FTP Network Cable, 23AWG Diameter with CU Conductor, Passed Fluke Test

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Conductor: solid bare copper
    • AWG: 23#
    • Conductor: 0.57mm
    • Insulation: PE
    • Average thickness: 0.24mm, ±0.03
    • Point thickness: 0.24mm
    • Insulation: 1.00mm, ±0.03
    • Twisting lay length: 30mm (underneath)
    • Cabling lay length: 200mm (underneath)
    • Jackets: PVC and LSZH
    • Average thickness: 0.5mm
    • Point thickness: 0.4mm
    • Rip cord: supported
    • Weight: 60kg
    • Core colors:
      • Pair 1: blue-white/blue
      • Pair 2: orange-white/orange
      • Pair 3: green-white/orange
      • Pair 4: brown-white/brown
  • Electrical performance:
    • 1.0 to 100.0MHz impedance: 100Ω, ±15
    • 100.0 to 250.0MHz impedance: 100Ω, ±22
    • Impedance delay screw: d45Ω
    • Pair to ground capacitance unbalances PF/100m: 330mAh (maximum)
    • Conductor DC resistance: 20%, d73.2Ω/km
    • Resistance unbalance: 5%
    • Test object: jacket
    • Test materials: PVC and LSZH
    • Before tensile strength: e13.8MPa
    • Aging elongation: e100%
    • Aging condition: 100 x 240°
    • After tensile strength: e85%
    • Aging elongation: e50% of aged
    • Cold bend: no crock (-20°C, ±2 x 4 hours)
  • Applications:
    • Pots T1 and T1 fractional, ISDN basic and primary rate 4 or16Mbps taken ring (IEEE802.5)
    • 10Base-T (IEEE 802.3), 100Mbps TP-PMD 52 or 155Mbps ATM (ATM forum)
    • 100Base-T4 (Ethernet) and 100 VG-any LAN (IEEE802.12)
    • 100Base-T (fast Ethernet) and 1Gbps Ethernet (IEEE 802.3)
  • Conductor: solid bare copper
  • AWG: 23#
  • Conductor: 0.57mm
  • Insulation: PE
  • Average thickness: 0.24mm, ±0.03
  • Point thickness: 0.24mm
  • Insulation: 1.00mm, ±0.03
  • Twisting lay length: 30mm (underneath)
  • Cabling lay length: 200mm (underneath)
  • Jackets: PVC and LSZH
  • Average thickness: 0.5mm
  • Point thickness: 0.4mm
  • Rip cord: supported
  • Weight: 60kg
  • Core colors:
    • Pair 1: blue-white/blue
    • Pair 2: orange-white/orange
    • Pair 3: green-white/orange
    • Pair 4: brown-white/brown
  • Pair 1: blue-white/blue
  • Pair 2: orange-white/orange
  • Pair 3: green-white/orange
  • Pair 4: brown-white/brown
  • 1.0 to 100.0MHz impedance: 100Ω, ±15
  • 100.0 to 250.0MHz impedance: 100Ω, ±22
  • Impedance delay screw: d45Ω
  • Pair to ground capacitance unbalances PF/100m: 330mAh (maximum)
  • Conductor DC resistance: 20%, d73.2Ω/km
  • Resistance unbalance: 5%
  • Test object: jacket
  • Test materials: PVC and LSZH
  • Before tensile strength: e13.8MPa
  • Aging elongation: e100%
  • Aging condition: 100 x 240°
  • After tensile strength: e85%
  • Aging elongation: e50% of aged
  • Cold bend: no crock (-20°C, ±2 x 4 hours)
  • Pots T1 and T1 fractional, ISDN basic and primary rate 4 or16Mbps taken ring (IEEE802.5)
  • 10Base-T (IEEE 802.3), 100Mbps TP-PMD 52 or 155Mbps ATM (ATM forum)
  • 100Base-T4 (Ethernet) and 100 VG-any LAN (IEEE802.12)
  • 100Base-T (fast Ethernet) and 1Gbps Ethernet (IEEE 802.3)
