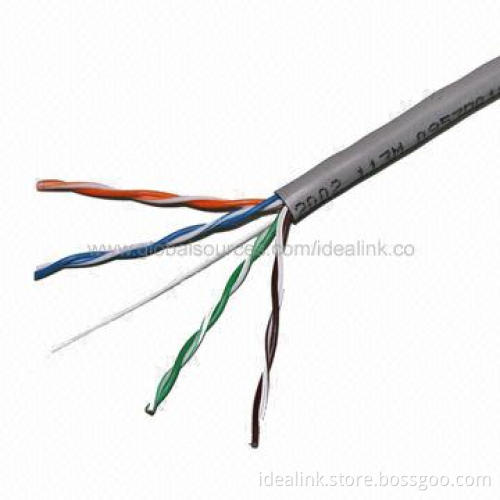

Cat5e UTP LAN Cable with Solid Bare Copper Unshielded Twisted-pair Network Cable
  • Cat5e UTP LAN Cable with Solid Bare Copper Unshielded Twisted-pair Network Cable
  • Cat5e UTP LAN Cable with Solid Bare Copper Unshielded Twisted-pair Network Cable
Cat5e UTP LAN Cable with Solid Bare Copper Unshielded Twisted-pair Network Cable
Cat5e UTP LAN Cable with Solid Bare Copper Unshielded Twisted-pair Network Cable

Cat5e UTP LAN Cable with Solid Bare Copper Unshielded Twisted-pair Network Cable

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Conductor: solid bare copper
    • AWG: 24
    • Conductor diameter: 0.50mm
    • Insulation: PE
    • Average thickness: 0.20mm ±0.03
    • Minimum point thickness: 0.17mm
    • Insulation diameter: 0.91mm ±0.03
    • Twisting lay length: 30mm (underneath)
    • Cabling lay length: 200mm (underneath)
    • Jacket: PVC/LSZH
    • Average thickness: 0.5mm
    • Minimum point thickness: 0.43mm
    • Outer diameter: 5.1mm ±0.01
    • Rip cord: supported
    • Weight nominal: 32kg/km
    • Core colors:
      • Pair 1: blue-white/blue
      • Pair 2: orange-white/orange
      • Pair 3: green-white/orange
      • Pair 4: brown-white/brown
  • Cable electrical performance (at 250MHz):
    • 1.0 to 100.0MHz impedance: 100© ±15
    • 100.0 to 250.0MHz impedance: 100© ±22
    • Impedance delay screw: <45ns/100m
    • Pair to ground capacitance unbalance: 330pf/100m (maximum)
    • Conductor DC resistance: <93.8©/km, 20%
    • Resistance unbalance: 5%
    • Test object jacket
    • Test material: PVC
    • Before tensile strength: e13.8MPa
    • Aging elongation: e100%
    • Aging condition (C x hours): 100 x 240
    • After tensile strength: e85%MPa of un-aged
    • Aging elongation: e50% of un-aged
    • Cold bend: no cracking
  • Standard compliance:
    • All proposed category 5e requirements as per ANSI/TIA/EIA, IECand CENELEC EN standards
    • ANSI/TIA/EIA 568-B.2 Cat5e, IEC 11801 class D 2nd edition, EN50173-1, EN 61156-5, EN 50288-2-1 horizontal cable
    • Flame retardancy is verified according to IEC 60332-1
  • Applications:
    • This 4-pair category 5e cable is tested for power sum next,ELFEXT, delay skew
    • Propagation delay and any other criteria as specified in theemerging standard
    • Applications can include voice, ISDN, ATM 155 and 622Mbps
    • 100Mbps TPDDI, fast and Gigabit Ethernet
    • Shielding protects against EMI/RFI interference
  • Conductor: solid bare copper
  • AWG: 24
  • Conductor diameter: 0.50mm
  • Insulation: PE
  • Average thickness: 0.20mm ±0.03
  • Minimum point thickness: 0.17mm
  • Insulation diameter: 0.91mm ±0.03
  • Twisting lay length: 30mm (underneath)
  • Cabling lay length: 200mm (underneath)
  • Jacket: PVC/LSZH
  • Average thickness: 0.5mm
  • Minimum point thickness: 0.43mm
  • Outer diameter: 5.1mm ±0.01
  • Rip cord: supported
  • Weight nominal: 32kg/km
  • Core colors:
    • Pair 1: blue-white/blue
    • Pair 2: orange-white/orange
    • Pair 3: green-white/orange
    • Pair 4: brown-white/brown
  • Pair 1: blue-white/blue
  • Pair 2: orange-white/orange
  • Pair 3: green-white/orange
  • Pair 4: brown-white/brown
  • 1.0 to 100.0MHz impedance: 100© ±15
  • 100.0 to 250.0MHz impedance: 100© ±22
  • Impedance delay screw: <45ns/100m
  • Pair to ground capacitance unbalance: 330pf/100m (maximum)
  • Conductor DC resistance: <93.8©/km, 20%
  • Resistance unbalance: 5%
  • Test object jacket
  • Test material: PVC
  • Before tensile strength: e13.8MPa
  • Aging elongation: e100%
  • Aging condition (C x hours): 100 x 240
  • After tensile strength: e85%MPa of un-aged
  • Aging elongation: e50% of un-aged
  • Cold bend: no cracking
  • All proposed category 5e requirements as per ANSI/TIA/EIA, IECand CENELEC EN standards
  • ANSI/TIA/EIA 568-B.2 Cat5e, IEC 11801 class D 2nd edition, EN50173-1, EN 61156-5, EN 50288-2-1 horizontal cable
  • Flame retardancy is verified according to IEC 60332-1
  • This 4-pair category 5e cable is tested for power sum next,ELFEXT, delay skew
  • Propagation delay and any other criteria as specified in theemerging standard
  • Applications can include voice, ISDN, ATM 155 and 622Mbps
  • 100Mbps TPDDI, fast and Gigabit Ethernet
  • Shielding protects against EMI/RFI interference
