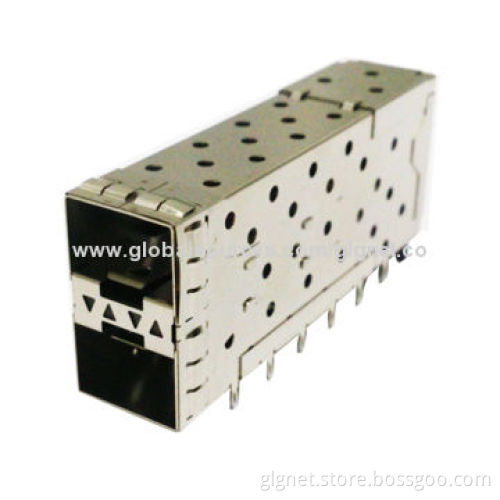

2x1 SFP+ Connector with Inner and Outer Light Pipe

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials:

Electrical:

Mechanical:

Cage: copper alloy, thickness: 0.25mm

Connector housing: glassed filled thermoplastic, UL94V-0

Color: white/black

Terminals: phosphor bronze

Light pipe: polycarbonate

Light pipe housing: glassed filled thermoplastic, UL94V-0, color: black

Rated voltage: 120V AC (RMS)

Rated current: 0.5A maximum at 30℃

Operating temperature: -40 to 85℃

Stockpile temperature: -40 to 85℃

Durability: 100 cycles

SFP transceiver insertion: 40N (maximum)

SFP transceiver extraction: 11.5N (maximum)

SFP transceiver retention: 90-170N

Cage retention: 110N (minimum)

Cage assembly insertion force into back panel: 25-152.4N
