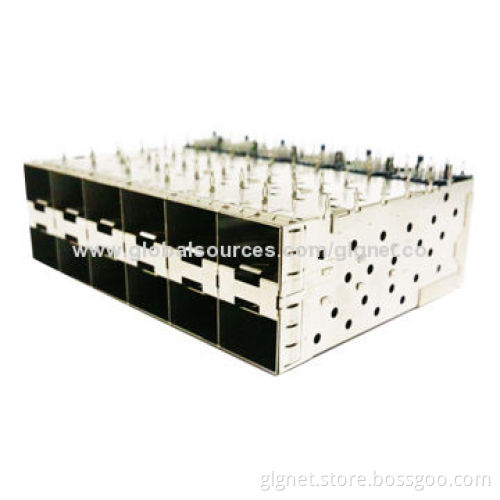

2x6 SFP+ with Spring

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials:

Finish:

Electrical:

Mechanical

Cage: Copper alloy, thickness: 0.25mm

Connector housing: Glassed filled thermoplastic, UL94V-0, color: black

Terminals: Phosphor bronze

Terminals contact area: plated gold

Solder terminal area: plated tin

Rated voltage: 120 VAC rms

Rated current: 0.5A Max @30℃

Operating temperatures: -40 to 85℃

Stockpile temperatures: -40 to 85℃

Durability: 100 cycles

SFP transceiver insertion: 40N Max

SFP transceiver extraction: 11.5N Max

SFP transceiver retention range: 90-170N

Cage retention: 110N Min

Cage assembly insertion force into back panel range: 25-152.4N
