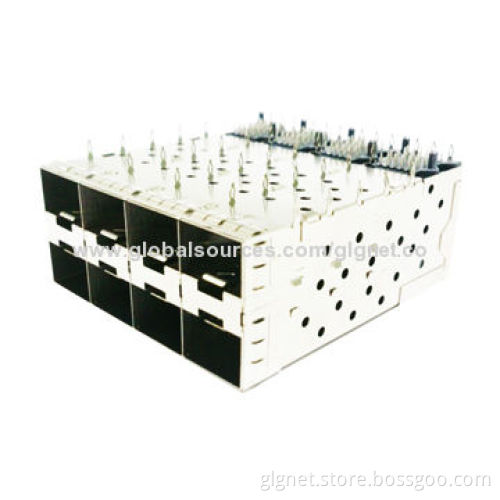

2 x 4 SFP Connector with 120V Voltage, 0.5A Current, with Spring

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials:

Finish range:

Electrical parameters:

Mechanical parameters:

Cage: Copper Alloy

Thickness>: 0.25mm

Connector housing: Glassed filled thermoplastic, UL94V-0,

Color: black

Terminals: Phosphor bronze

Terminals contact area: plated gold

Solder terminal area: plated tin

Rated voltage: 120 VAC rms

Rated current: 0.5A Max @ 30℃

Operating temperatures: -40 to 85℃

Stockpile temperatures:-40 to 85℃

Durability: 100 cycles

SFP transceiver insertion: 40N maximum

SFP transceiver extraction: 11.5N maximum

SFP transceiver retention: 90-170N

Cage retention:110N Min

Cage assembly insertion force into back panel: 25-152.4N
