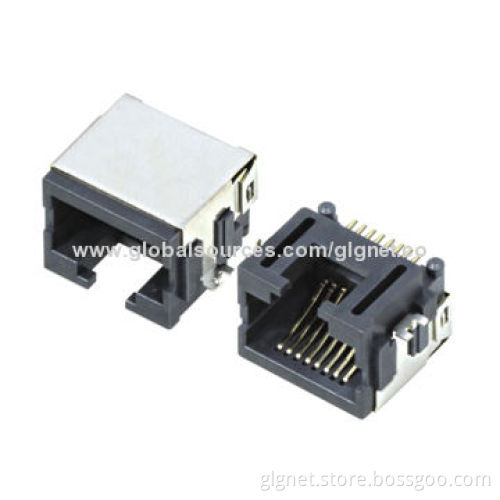

RJ45 1*1 Port Connectors with Shielding, Without LED, SMT Type, 150V Rated Voltage
- Payment Type:
- Telegraphic Transfer (TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer (TT,T/T) |
|---|
- Housing: LCP + 30% GF, UL94V-0 black
- Shield: C2680-H, t = 0.20mm
- Contact: C5210-EH, t = 0.35mm
- Shield: nickel-plated
- Terminal: selective gold-plated over-nickel
- Rated voltage: 150V (maximum)
- Rated current: 1.5A (maximum)
- Dielectric withstanding voltage: 500V AC/minute
- Insulation resistance: 500mΩ/minute
- Connector mating force: 30N (maximum)
- Plug retention force: 50N (minimum)
- Durability test: 750 cycles (minimum)
- Operating temperature: -40 to +85℃
- Tape and reel
- Plastic tray
