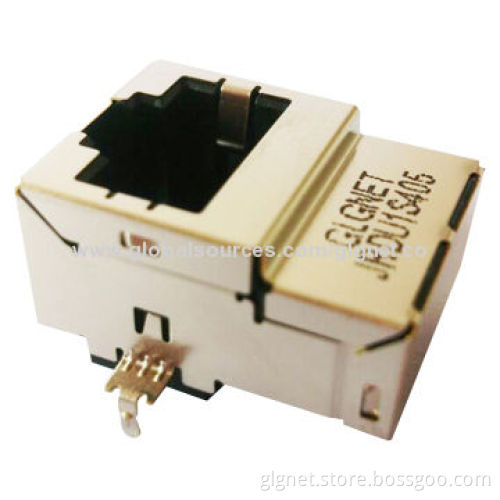

RJ45 1X1 Vertical Through Hole W/O LED, with Transformer

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials

Housing: Glass filled PA46 (Black) UL94V-0 (RoHS)
RJ contact/plastic: Filled PA46 (Black) UL94V-0 (RoHS)
Insert: Glass filled PA46 (Black) UL94V-0 (RoHS)
Shield：0.2mm thickness with stainless (C2680)
Jack cavity conforms to FCC rules and regulations part 68 subpart F
The part is recommended for wave soldering process peak, soldering temperature is 260°C maximum, 10 Secs Max.

Electrical

Operating temperatures: 0 to 70°C
Storage temperatures: -40 to 85°C
Turns ratio: 1:1±2%
Inductance(OCL): 350uH MIN@100KHz/100mV with 8mA DC bias
Insertion loss: -1.0dB MAX@0.3MHz-100MHz
Return loss (Z out=100 OHM): -18dB MIN@1MHz-30MHz; -13dB MIN@30MHz-60MHz; -10dB MIN@60MHz-100MHz
Crosstalk(Adjacent channels): -40dB MIN@0.3MHz-30MHz; -35dB MIN@30MHz-60MHz; -30dB MIN@60MHz-100MHz
Common mode rejection ratio: -30dB MIN@1-30MHz; -25dB MIN@30-60MHz; -20dB MIN@60-100MHz
DC resistance imbalance: 0.1A maximum@48V DC (continuous)
DC current/voltage rating-PSE pins: 2,250V DC@60 second
