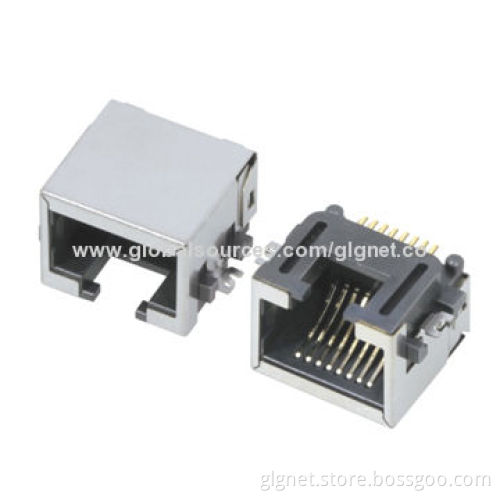

RJ45 1 x 1-port Connectors with Shielding, Without LED, SMT Type
- Payment Type:
- Telegraphic Transfer (TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer (TT,T/T) |
|---|
- Housing: LCP + 30% GF, UL94V-0 black
- Shield: 0.20mm thickness copper alloy with nickel plated
- Contact: 0.35*0.43mm phosphor bronze plating over-nickel
- Rated voltage: 150V AC rms (maximum)
- Rated current: 1.5A maximum at 25℃
- Dielectric with standing voltage: 500V AC/minimum
- Insulation resistance: 500mΩ/minimum
- Connector mating force: 30N (maximum)
- Plug retention force: 50N (minimum)
- Durability test: 750 cycles (minimum)
- Operating temperature: -40 to +85℃
- Tape and reel
- Plastic tray
