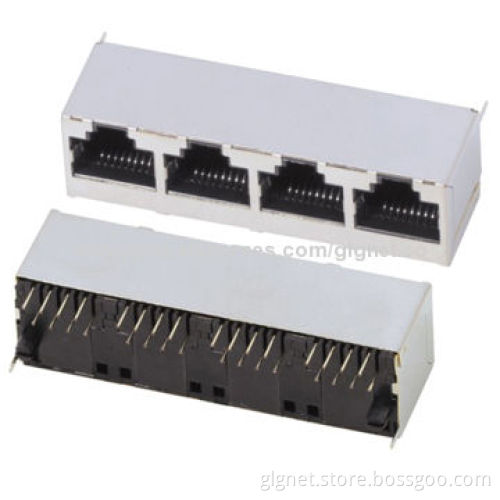

RJ45 1*4 port with shielding, w/o LED, vertical type

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials:

Electrical:

Mechanical

Package： Plastic tray

RJ45 cavities conform to FCC rules and regulations part 68 subpart F

All the raw materials meet RoHS

Housing & Insert: PBT,PA46.PA66 UL94V-0

Colors： According to customer's request

Contact: Selective gold plated over nickel

Rated voltage: 150V max.

Rated current: 1.5A max.

Dielectric withstanding voltage: 500V AC/min.

Insulation resistance: 500 mΩ/Min

Connector mating force: 30N max.

Plug retention force: 50N min.

Durability test: 750 cycles min.

Operating temperatures: -40 to 85℃
