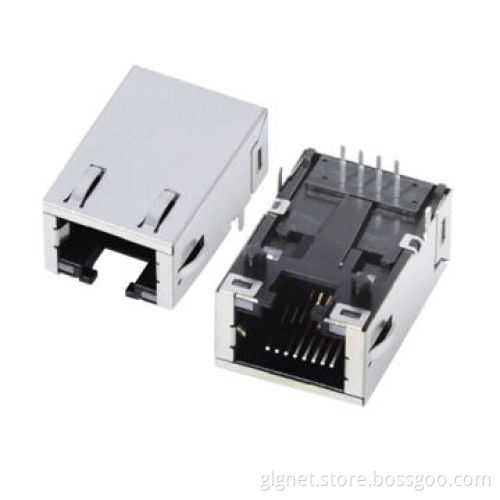

1*1 port RJ45 connector, tab down, side entry, with shielding and spring，low height
- Payment Type:
- Telegraphic Transfer (TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer (TT,T/T) |
|---|
- Housing: PA46.UL94V-0.Black
- Contact：C5210R-EH,0.3mm thickness
- Solder：C2680R-H,0.25mm thickness
- Shell：Brass，0.2mm thickness
- Light pipe: Clarity PC
- Contact: Gold plated over nickel
- Solder: Tin plated over nickel
- Rated voltage: 125VAC rms
- Rated current: 1.5A max @ 25℃
- Dielectric withstanding voltage: 1,000V AC 0.5mA 60s
- Insulation resistance: 500mΩ minimum @ 500VDC
- Contact resistance： 40mΩ Max
- Connector mating force: 30N maximum
- Plug retention force: 50N min
- Durability test: 750 cycles minimum
- Operating temperatures: -40-85℃
