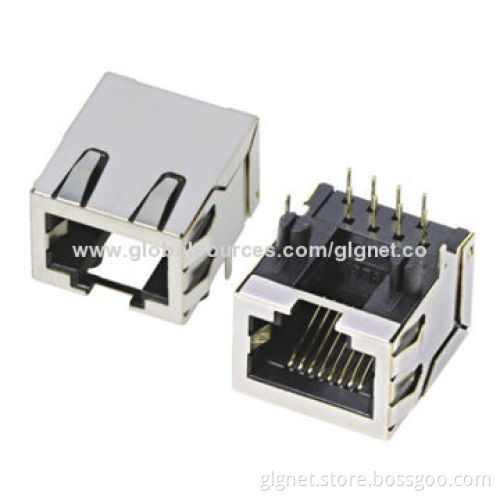

RJ45 Modular Jacks, 1*1 port, 8P8C/8P4C, side entry, with shielding and spring, low-height

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials:

Electrical specifications:

Mechanical specifications:

Package: plastic tray

RJ45 cavities conform to FCC rules and regulations part 68 subpart F

All the raw materials meet RoHS

Housing and insert: PBT, PA46/PA66, UL94V-0

Color: according to customer's request

Contact: selective gold plated over nickel

Shielding: copper alloy with nickel plated

Rated voltage: 150V (maximum)

Rated current: 1.5A (maximum)

Dielectric withstanding voltage: 500V AC/min

Insulation resistance: 500mΩ/min

Connector mating force: 30N (maximum)

Plug retention force: 50N (minimum)

Durability test: 750 cycles (minimum)

Operating temperature: -40 to 85℃
