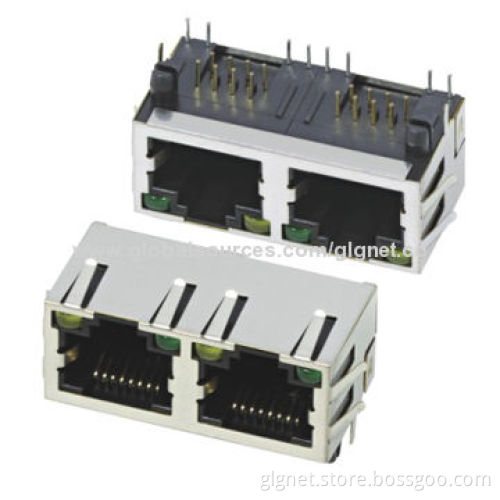

Tab up 1*2 port RJ45 connector, with LED, shielding and spring, R/A type
- Payment Type:
- Telegraphic Transfer (TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer (TT,T/T) |
|---|
- Housing and insert: PBT, PA46.PA66 UL94V-0
- Colors: according to customer's requirements
- Contact: selective gold plated over nickel
- Shielding: 0.2mm thickness copper alloy with nickel plated
- LED color:selective
- Rated voltage: 150V max
- Rated current: 1.5A max
- Dielectric withstanding voltage: 500V AC/min
- Insulation resistance: 500mΩ/min
- Connector mating force: 30N max
- Plug retention force: 50N min
- Durability test: 750 Cycles min
- Operating temperature: -40-85°C
- Plastic tray
- RJ45 cavities conform to FCC rules and regulations part 68 subpart F
- All the raw materials meet RoHS
