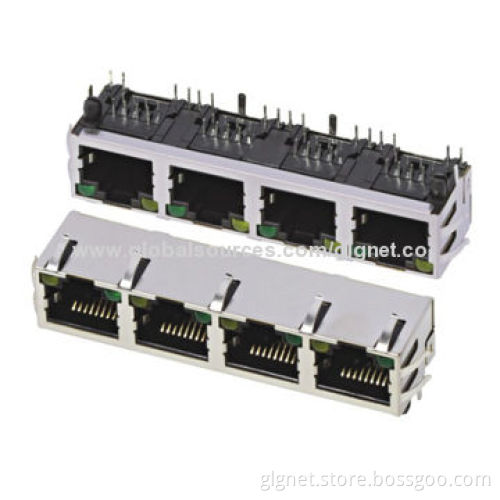

Tab up 1*4 port RJ45 connector, with LED, shielded with spring, R/A type, flat pin
- Payment Type:
- Telegraphic Transfer (TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer (TT,T/T) |
|---|
- Housing & insert: PBT, PA46.PA66 UL94V-0
- Colors: According to customer's request
- Contact: Selective gold plated over nickel
- Shielding：0.2mm thickness copper alloy with nickel plated.
- LED color:selective
- Rated voltage: 150V maximum
- Rated current: 1.5A maximum
- Dielectric withstanding voltage: 500V AC/Min
- Insulation resistance: 500mΩ/Min
- Connector mating force: 30N maximum
- Plug retention force: 50N minimum
- Durability test: 750 Cycles minimum
- Operating temperatures: -40-85℃
- Plastic tray
- RJ45 cavities conform to FCC rules and regulations part 68 subpart F
- All the raw materials meet RoHS
