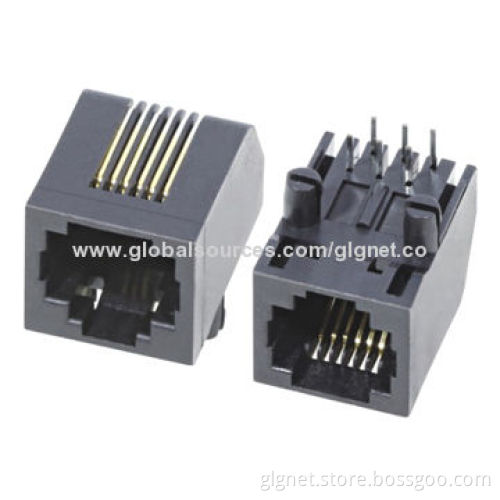

RJ11 connector, single port, side entry, tab down, bevel edge, flat pin
  • RJ11 connector, single port, side entry, tab down, bevel edge, flat pin
RJ11 connector, single port, side entry, tab down, bevel edge, flat pin

RJ11 connector, single port, side entry, tab down, bevel edge, flat pin

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Pins: 6P6C, 6P4C
  • Materials:
    • Housing and insert: PBT, PA46.PA66 UL94V-0
    • Color: according to customer's requirements
    • Contact: selective gold plated over nickel
  • Electrical specifications:
    • Rated voltage: 150V max
    • Rated current: 1.5A max
    • Dielectric withstanding voltage: 500V AC/min
    • Insulation resistance: 500mΩ/min
  • Mechanical specifications:
    • Connector mating force: 30N max
    • Plug retention force: 50N min
    • Durability test: 750 Cycles min
    • Operating temperatures: -40 to +85°C
  • Package:
    • Plastic tray
  • RJ45 cavities conform to FCC rules and regulations part 68 subpart F
  • All the raw materials meet RoHS
  • Housing and insert: PBT, PA46.PA66 UL94V-0
  • Color: according to customer's requirements
  • Contact: selective gold plated over nickel
  • Rated voltage: 150V max
  • Rated current: 1.5A max
  • Dielectric withstanding voltage: 500V AC/min
  • Insulation resistance: 500mΩ/min
  • Connector mating force: 30N max
  • Plug retention force: 50N min
  • Durability test: 750 Cycles min
  • Operating temperatures: -40 to +85°C
  • Plastic tray
