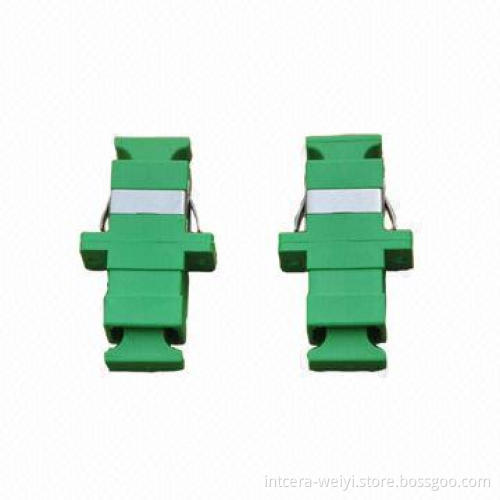

SC/APC Fiber-optical Connector in Simplex, with 100% Optic Test (Insertion Loss)
  • SC/APC Fiber-optical Connector in Simplex, with 100% Optic Test (Insertion Loss)
SC/APC Fiber-optical Connector in Simplex, with 100% Optic Test (Insertion Loss)

SC/APC Fiber-optical Connector in Simplex, with 100% Optic Test (Insertion Loss)

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  •  Products features:
    • Stable capability
    • Accurate mechanical dimensions
    • Compliant with the RoHS Directives
    • High performance interconnections offer very low insertion loss
    • 100% tested before shipment to ensure superior quality and durability
    • Both of ceramic (zirconia) phosphor and bronze alignment sleeves are available
    • All standard and hybrid types are offered in both multi-mode and single mode construction
    • Widely used for patch panels/splice closure/ODF/terminal boxes and more
    • FC, SC, ST, LC, MTRJ, MU, and more types are also available
    • Simplex and duplex are available
  • Applications:
    • Telecommunication
    • CATV
    • LANs
    • Network
    • Testing/measurement instrument
    • Fiber-optic transmission system
    • Fiber distribution frame, fiber optic wall and rack mount cabinets
  • Parameters:
    • Insertion loss: <0.2dB (PC/APC)
    • Durability (500 cycles): 0.2dB maximum increase
    • Withdrawal force range: 100 to 600g/f
    • Temperature stability: ≤0.3dB
    • Operating temperature range: -40 to 80°C
    • Storage temperature range: -40 to 85 °C
  • Stable capability
  • Accurate mechanical dimensions
  • Compliant with the RoHS Directives
  • High performance interconnections offer very low insertion loss
  • 100% tested before shipment to ensure superior quality and durability
  • Both of ceramic (zirconia) phosphor and bronze alignment sleeves are available
  • All standard and hybrid types are offered in both multi-mode and single mode construction
  • Widely used for patch panels/splice closure/ODF/terminal boxes and more
  • FC, SC, ST, LC, MTRJ, MU, and more types are also available
  • Simplex and duplex are available
  • Telecommunication
  • CATV
  • LANs
  • Network
  • Testing/measurement instrument
  • Fiber-optic transmission system
  • Fiber distribution frame, fiber optic wall and rack mount cabinets
  • Insertion loss: <0.2dB (PC/APC)
  • Durability (500 cycles): 0.2dB maximum increase
  • Withdrawal force range: 100 to 600g/f
  • Temperature stability: ≤0.3dB
  • Operating temperature range: -40 to 80°C
  • Storage temperature range: -40 to 85 °C
