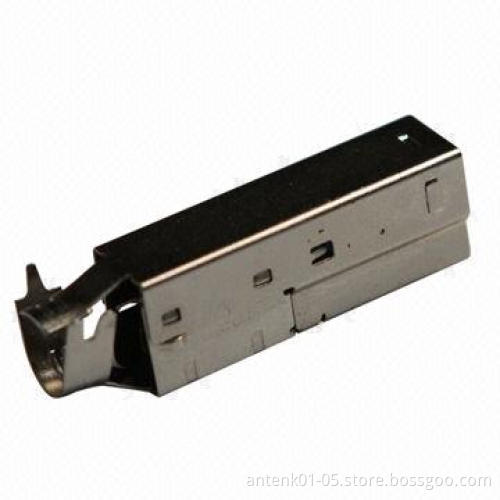

USB Connector, USB3.0 B Type, Plug, Wire Soldering Type
  • USB Connector, USB3.0 B Type, Plug, Wire Soldering Type
  • USB Connector, USB3.0 B Type, Plug, Wire Soldering Type
USB Connector, USB3.0 B Type, Plug, Wire Soldering Type
USB Connector, USB3.0 B Type, Plug, Wire Soldering Type

USB Connector, USB3.0 B Type, Plug, Wire Soldering Type

Get Latest Price
Payment Type:
TT in Advance, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT in Advance, PayPal or Western Union
Product Description
Product Description
  • Electrical:
    • Voltage rating: 30V AC
    • Current: pin 1 and 4 1.8A
    • Other pins: 0.25A (minimum)
    • Contact resistance: 30M© maximum (pin 1 and 4), 50M©maximum (other pins)
    • Dielectric strength: 100V AC
    • Insulation resistance: 100M© (minimum)
  • Mechanical:
    • Insertion force: 35N (maximum)
    • Extraction force: 10N (minimum)
    • And after test 8N (minimum)
    • Standard durability class: 1,500 cycles
    • High-durability class: 5,000 cycles
  • Environmental:
    • Operating temperature: 0 to +60
    • Storage temperature: -20 to +85
  • Voltage rating: 30V AC
  • Current: pin 1 and 4 1.8A
  • Other pins: 0.25A (minimum)
  • Contact resistance: 30M© maximum (pin 1 and 4), 50M©maximum (other pins)
  • Dielectric strength: 100V AC
  • Insulation resistance: 100M© (minimum)
  • Insertion force: 35N (maximum)
  • Extraction force: 10N (minimum)
  • And after test 8N (minimum)
  • Standard durability class: 1,500 cycles
  • High-durability class: 5,000 cycles
  • Operating temperature: 0 to +60
  • Storage temperature: -20 to +85
