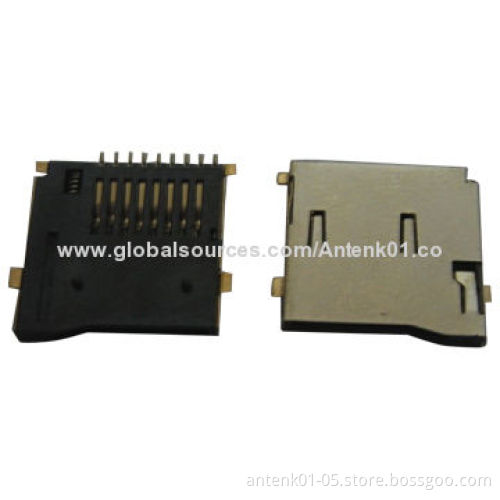

Micro SD Push Connectors with Reel Packing, Au-plated
  • Micro SD Push Connectors with Reel Packing, Au-plated
  • Micro SD Push Connectors with Reel Packing, Au-plated
  • Micro SD Push Connectors with Reel Packing, Au-plated
  • Micro SD Push Connectors with Reel Packing, Au-plated
Micro SD Push Connectors with Reel Packing, Au-plated
Micro SD Push Connectors with Reel Packing, Au-plated
Micro SD Push Connectors with Reel Packing, Au-plated
Micro SD Push Connectors with Reel Packing, Au-plated

Micro SD Push Connectors with Reel Packing, Au-plated

Get Latest Price
Payment Type:
T/T in Advance, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal or Western Union
Product Description
Product Description
  • Electrical:
    • Insulation resistance: between adjacent contact-to-contact
      • Initial: 1,000MΩ (minimum)
      • Final: 100MΩ (minimum)
    • Contact resistance: between adjacent contact-to-contact
      • Initial: each card: 100mΩ (maximum)
      • After test: each card: 540mΩ (maximum)
  • Mechanical:
    • Durability: no physical damage, each card insertion/extraction 12,000 cycles (one connector for single card/single durability cycling)
  • Material and finishing:
    • Insulator: high-temperature thermoplastic UL94V-0
    • Color: black
    • Contact: copper alloy
  • Plating:
    • Contact area: Au-plated over Ni solder area: tin-plated over nickel
  • Reel packing
  • Insulation resistance: between adjacent contact-to-contact
    • Initial: 1,000MΩ (minimum)
    • Final: 100MΩ (minimum)
  • Contact resistance: between adjacent contact-to-contact
    • Initial: each card: 100mΩ (maximum)
    • After test: each card: 540mΩ (maximum)
  • Initial: 1,000MΩ (minimum)
  • Final: 100MΩ (minimum)
  • Initial: each card: 100mΩ (maximum)
  • After test: each card: 540mΩ (maximum)
  • Durability: no physical damage, each card insertion/extraction 12,000 cycles (one connector for single card/single durability cycling)
  • Insulator: high-temperature thermoplastic UL94V-0
  • Color: black
  • Contact: copper alloy
  • Contact area: Au-plated over Ni solder area: tin-plated over nickel
