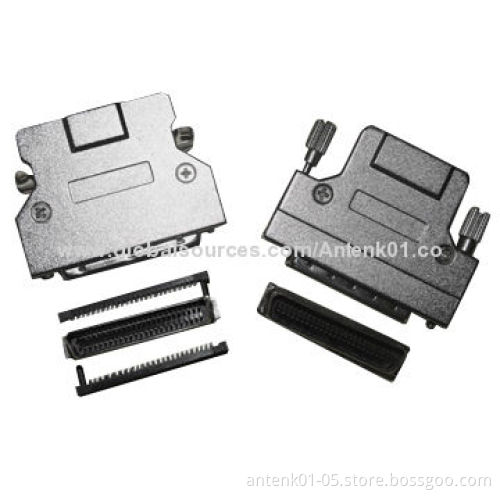

SCSI Centronics 1.27mm Male 68-pin SCSI Connectors with 45° Metal Dust Cover
  • SCSI Centronics 1.27mm Male 68-pin SCSI Connectors with 45° Metal Dust Cover
  • SCSI Centronics 1.27mm Male 68-pin SCSI Connectors with 45° Metal Dust Cover
SCSI Centronics 1.27mm Male 68-pin SCSI Connectors with 45° Metal Dust Cover
SCSI Centronics 1.27mm Male 68-pin SCSI Connectors with 45° Metal Dust Cover

SCSI Centronics 1.27mm Male 68-pin SCSI Connectors with 45° Metal Dust Cover

Get Latest Price
Payment Type:
T/T in Advance, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal or Western Union
Product Description
Product Description
  • SCSI connectors with straight male cover or 45° metal cover available:
    • SCSI-2 D-sub IDC straight:
      • Male/female: 020, 026, 028, 040, 050, 060, 068, 080, 100,120
    • SCSI-2 D-sub PCB straight:
      • Male/female: 014, 020, 036, 050, 068
    • SCSI-2 centronic PCB straddle mount:
      • Male/female: 014, 020, 026, 036, 040, 050, 060, 068, 080,100
    • SCSI-2 centronic PCB right angle:
      • Male/female: 014, 020, 026, 036, 040, 050, 060, 068, 080,100
  • Properties:
    • Insulator material:
      • PBT glass filled
      • UL 94V-0
      • Shell: zinc alloy
      • Terminal: phosphor bronze
    • Current rating: 1A
    • Voltage rating: 150V AC
    • Insulator resistance: >500MΩ at 500V
    • Contact resistance: <15 milliΩ
    • Dielectric voltage: 500V at 1 minute
    • Operating temperature: -55 to +105°C
  • Contact plating:
    • Selective gold
    • Gold flash
    • 15 micro inch gold
    • 30 micro inch gold
  • SCSI-2 D-sub IDC straight:
    • Male/female: 020, 026, 028, 040, 050, 060, 068, 080, 100,120
  • SCSI-2 D-sub PCB straight:
    • Male/female: 014, 020, 036, 050, 068
  • SCSI-2 centronic PCB straddle mount:
    • Male/female: 014, 020, 026, 036, 040, 050, 060, 068, 080,100
  • SCSI-2 centronic PCB right angle:
    • Male/female: 014, 020, 026, 036, 040, 050, 060, 068, 080,100
  • Male/female: 020, 026, 028, 040, 050, 060, 068, 080, 100,120
  • Male/female: 014, 020, 036, 050, 068
  • Male/female: 014, 020, 026, 036, 040, 050, 060, 068, 080,100
  • Male/female: 014, 020, 026, 036, 040, 050, 060, 068, 080,100
  • Insulator material:
    • PBT glass filled
    • UL 94V-0
    • Shell: zinc alloy
    • Terminal: phosphor bronze
  • Current rating: 1A
  • Voltage rating: 150V AC
  • Insulator resistance: >500MΩ at 500V
  • Contact resistance: <15 milliΩ
  • Dielectric voltage: 500V at 1 minute
  • Operating temperature: -55 to +105°C
  • PBT glass filled
  • UL 94V-0
  • Shell: zinc alloy
  • Terminal: phosphor bronze
  • Selective gold
  • Gold flash
  • 15 micro inch gold
  • 30 micro inch gold
