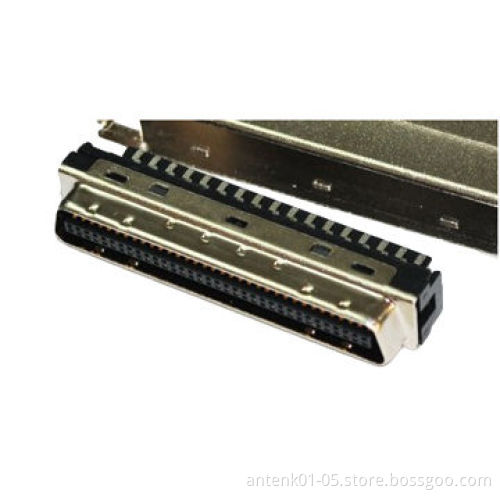

SCSI Centronics 1.27mm Male 68-pin SCSI Connectors with 45drg Metal Dust Cover

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal or Western Union

Product Description

SCSI-2 D-sub IDC straight: Male/female: 020, 026, 028, 040, 050, 060, 068, 080, 100, 120

SCSI-2 D-sub PCB straight: Male/female: 014, 020, 036, 050, 068

SCSI-2 centronic PCB straddle mount: Male/female: 014, 020, 026, 036, 040, 050, 060, 068, 080, 100

SCSI-2 centronic PCB right angle: Male/female: 014, 020, 026, 036, 040, 050, 060, 068, 080, 100

Properties:

Insulator material: PBT glass filled

UL 94V-0Shell: zinc alloy

Terminal: phosphor bronze

Current rating: 1A

Voltage rating: 150V AC

Insulator resistance: >500M Ohms at 500V

Contact resistance: <15 milli Ohms

Dielectric voltage: 500V at 1 minute

Operating temperatures: -55 to 105 degrees Celsius

Contact plating: Selective gold

Gold flash15 micro inch gold

30 micro inch gold
