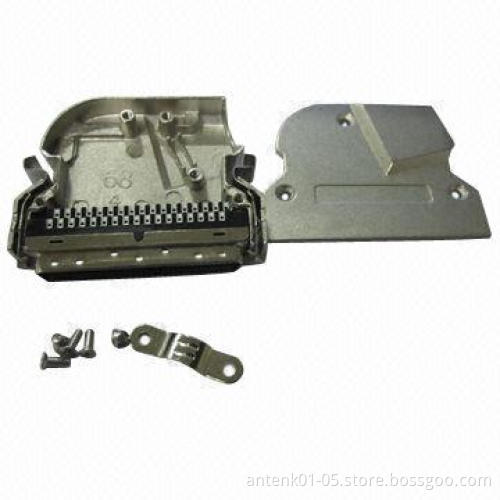

SCSI 68P Solder Connector, +45 Degrees Entry Metal Cover

SCSI connectors availableSCSI-2 D-sub IDC straightMale/female: 020, 026, 028, 040, 050, 060, 068, 080, 100 & 120SCSI-2 D-sub PCB straight: male/female: 014, 020, 036, 050 & 068SCSI-2 centronic PCB straddle mount:

Male/female: 014, 020, 026, 036, 040, 050, 060, 068, 080 & 100

SCSI-2 centronic PCB right angle:

Male/female: 014, 020, 026, 036, 040, 050, 060, 068, 080 & 100

Properties:

Insulator material:
PBT glass filledUL94V-0Shell: zinc alloyTerminal: Phosphor bronze
Current rating: 1AVoltage rating: 150V ACInsulator resistance: >500M Ohms at 500VContact resistance: Selective goldGold flash15 micro inch gold30 micro inch gold

Male/female: 014, 020, 026, 036, 040, 050, 060, 068, 080 & 100Male/female: 014, 020, 026, 036, 040, 050, 060, 068, 080 & 100Insulator material:

PBT glass filledUL94V-0Shell: zinc alloyTerminal: Phosphor bronze

Current rating: 1AVoltage rating: 150V ACInsulator resistance: >500M Ohms at 500VContact resistance: Selective goldGold flash15 micro inch gold30 micro inch goldPBT glass filledUL94V-0Shell: zinc alloyTerminal: Phosphor bronze
