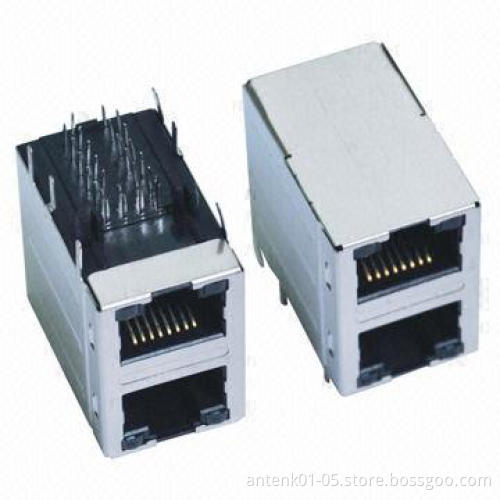

RJ45 Connectors with Shield Jack, Integrated Magnetics, LED and Transformer
  • RJ45 Connectors with Shield Jack, Integrated Magnetics, LED and Transformer
  • RJ45 Connectors with Shield Jack, Integrated Magnetics, LED and Transformer
RJ45 Connectors with Shield Jack, Integrated Magnetics, LED and Transformer
RJ45 Connectors with Shield Jack, Integrated Magnetics, LED and Transformer

RJ45 Connectors with Shield Jack, Integrated Magnetics, LED and Transformer

Get Latest Price
Payment Type:
T/T in Advance, PayPal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal, Western Union
Product Description
Product Description
  • Specifications:
    • Storage temperature: -40 to 85°C
    • Lead-free process
  • Feature:
    • LAN interface suitable for 10/100/1,000Base-T applications
    • 2 x 1 RJ45 design saves on PCB real estate
    • Meets IEEE 802.3 specifications
    • High-performance for maximum EMI suppression
    • Housing: thermoplastic PBT + 30% GF UL94V-0 rated
    • Operating temperature: 0 to 70°C
  • Electrical specifications: (25°C)
    • Turns ratio:
      • TX and RX = 1:1, ±5%
    • Insertion loss:
      • 1 to 65MHz: -1.0dB (maximum)
    • Return loss:
      • 1 to 30MHz: -20dB (minimum)
      • 60 to 80MHz: -12dB (minimum)
    • Common mode rejection:
      • 1 to 50MHz: -30dB (minimum)
      • 50 to 130MHz: -20dB (minimum)
    • Crosstalk:
      • 1 to 100MHz: -30dB (minimum)
    • OCL:
      • 100kHz, 0.1V, 8mA DC: 350uH Mi
    • Hi-pot: 1,500V AC, 1mA, 1s
  • Storage temperature: -40 to 85°C
  • Lead-free process
  • LAN interface suitable for 10/100/1,000Base-T applications
  • 2 x 1 RJ45 design saves on PCB real estate
  • Meets IEEE 802.3 specifications
  • High-performance for maximum EMI suppression
  • Housing: thermoplastic PBT + 30% GF UL94V-0 rated
  • Operating temperature: 0 to 70°C
  • Turns ratio:
    • TX and RX = 1:1, ±5%
  • Insertion loss:
    • 1 to 65MHz: -1.0dB (maximum)
  • Return loss:
    • 1 to 30MHz: -20dB (minimum)
    • 60 to 80MHz: -12dB (minimum)
  • Common mode rejection:
    • 1 to 50MHz: -30dB (minimum)
    • 50 to 130MHz: -20dB (minimum)
  • Crosstalk:
    • 1 to 100MHz: -30dB (minimum)
  • OCL:
    • 100kHz, 0.1V, 8mA DC: 350uH Mi
  • Hi-pot: 1,500V AC, 1mA, 1s
  • TX and RX = 1:1, ±5%
  • 1 to 65MHz: -1.0dB (maximum)
  • 1 to 30MHz: -20dB (minimum)
  • 60 to 80MHz: -12dB (minimum)
  • 1 to 50MHz: -30dB (minimum)
  • 50 to 130MHz: -20dB (minimum)
  • 1 to 100MHz: -30dB (minimum)
  • 100kHz, 0.1V, 8mA DC: 350uH Mi
