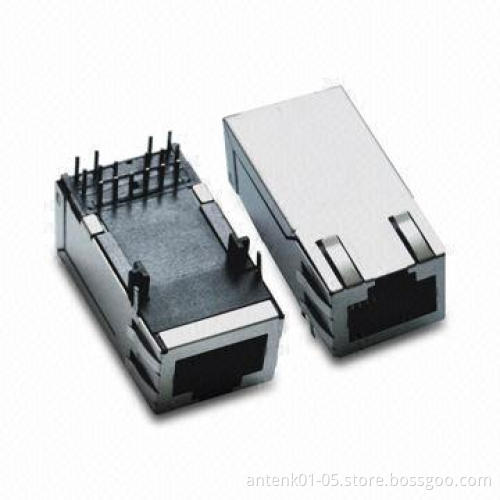

RJ45 Connectors with Shield Jack, LED, EMI 1.3 Inches and Transformer
  • RJ45 Connectors with Shield Jack, LED, EMI 1.3 Inches and Transformer
  • RJ45 Connectors with Shield Jack, LED, EMI 1.3 Inches and Transformer
RJ45 Connectors with Shield Jack, LED, EMI 1.3 Inches and Transformer
RJ45 Connectors with Shield Jack, LED, EMI 1.3 Inches and Transformer

RJ45 Connectors with Shield Jack, LED, EMI 1.3 Inches and Transformer

Get Latest Price
Payment Type:
TT in Advance, Paypal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT in Advance, Paypal, Western Union
Product Description
Product Description
  • Feature:
    • Peak solder rating: 260
    • Parts are 100% tin matte finish over nickle
    • Moisture sensitivity level rating: from 1 to 5
    • Storage temperature: -40 to +85
    • Lead-free process
  • Electrical specifications at 25:
    • Insertion loss:
      1 to 100MHz: 1.0dB (maximum)
    • Return loss:
      • 1 to 40MHz: -18.OdB (minimum)
      • 60MHz: -14.0dB (minimum)
      • 80MHz: -12.0dB (minimum)
      • 100MHz: -10.0dB (minimum)
    • Crosstalk:
      1 to 100MHz: -30.0dB (minimum)
    • Common mode rejection:
      1 to 100MHz: -30.0dB (minimum)
  • Hipot: 1,500V AC, 6s, 1mA
  • OCL: 350uH minimum at 100kHz, 100mV, 8mA DC
  • Peak solder rating: 260
  • Parts are 100% tin matte finish over nickle
  • Moisture sensitivity level rating: from 1 to 5
  • Storage temperature: -40 to +85
  • Lead-free process
  • Insertion loss:
    1 to 100MHz: 1.0dB (maximum)
  • Return loss:
    • 1 to 40MHz: -18.OdB (minimum)
    • 60MHz: -14.0dB (minimum)
    • 80MHz: -12.0dB (minimum)
    • 100MHz: -10.0dB (minimum)
  • Crosstalk:
    1 to 100MHz: -30.0dB (minimum)
  • Common mode rejection:
    1 to 100MHz: -30.0dB (minimum)
  • 1 to 40MHz: -18.OdB (minimum)
  • 60MHz: -14.0dB (minimum)
  • 80MHz: -12.0dB (minimum)
  • 100MHz: -10.0dB (minimum)
