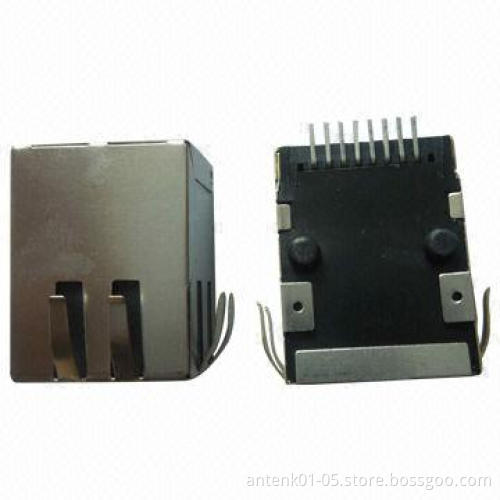

RJ45 Jack Connectors with Transformer, SMT Version, No LED, with EMI or Without
  • RJ45 Jack Connectors with Transformer, SMT Version, No LED, with EMI or Without
  • RJ45 Jack Connectors with Transformer, SMT Version, No LED, with EMI or Without
RJ45 Jack Connectors with Transformer, SMT Version, No LED, with EMI or Without
RJ45 Jack Connectors with Transformer, SMT Version, No LED, with EMI or Without

RJ45 Jack Connectors with Transformer, SMT Version, No LED, with EMI or Without

Get Latest Price
Payment Type:
T/T in Advance, PayPal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal, Western Union
Product Description
Product Description
  • PCB modular jack and RJ45 + transformer 100 base, SMD version,with EMI or without, without LED but shield
  • Electrical:
    • Current rating: 1.5A
    • Voltage rating: 125V AC
    • Insulation resistance: 500M© (minimum)
    • Contact resistance: 30M© (maximum)
    • Withstanding voltage: 1,000V AC, RMS, 50 or 60Hz, 1 minute
  • Mechanical:
    • Insertion force: 2.2kg, F (maximum)
    • Retention strength: 7.7kgf minimum between jack and plug
    • Durability: 600 mating cycles (minimum)
  • Materials:
    • Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0),PA46 (UL94V-0)
    • Contact wire: diameter 0.45mm phosphor bronze gold plating overnickel
    • 0.35mm thickness phosphor bronze alloy selective gold platingover nickel
    • Shield: 0.20 to 0.25mm thickness brass with tin-plated
    • Gold plating: 3u, 6u, 15u, 30u, 50u inches
  • Environment:
  • Working temperature: -40 to 85
  • Current rating: 1.5A
  • Voltage rating: 125V AC
  • Insulation resistance: 500M© (minimum)
  • Contact resistance: 30M© (maximum)
  • Withstanding voltage: 1,000V AC, RMS, 50 or 60Hz, 1 minute
  • Insertion force: 2.2kg, F (maximum)
  • Retention strength: 7.7kgf minimum between jack and plug
  • Durability: 600 mating cycles (minimum)
  • Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0),PA46 (UL94V-0)
  • Contact wire: diameter 0.45mm phosphor bronze gold plating overnickel
  • 0.35mm thickness phosphor bronze alloy selective gold platingover nickel
  • Shield: 0.20 to 0.25mm thickness brass with tin-plated
  • Gold plating: 3u, 6u, 15u, 30u, 50u inches
