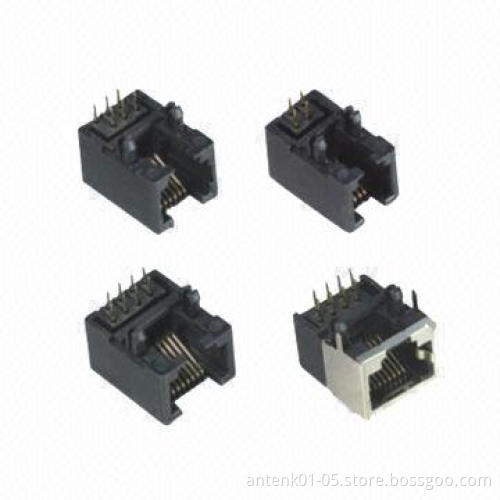

RJ45 L/P PCB Jack Connectors with 1.5A Current Rating, 125V AC Voltage Rating

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal or Western Union

Product Description

Electrical:

Mechanical:

Environmental:

Material:

Voltage rating: 125V AC (rms)

Current rating: 1.5A

Contact resistance: 30m Ohms (maximum)

Insulation resistance: 500m Ohms at 500V DC (minimum)

Dielectric withstanding resistance: 1,000V AC (rms) 50Hz 1minute

Durability: 750 cycles minimum

PCB retention pre-solder: 1lb minimum

Storage temperature: -40 to 80°C

Operating temperature: 0 to 70°C

Housing material: glass filled polyester UL94-0 PBT, nylon

Housing color: black or others

Contact material: phosphor bronze Æ0.46mm

Plating: gold plating over nickel, gold plating

Thickness: 1.5u
