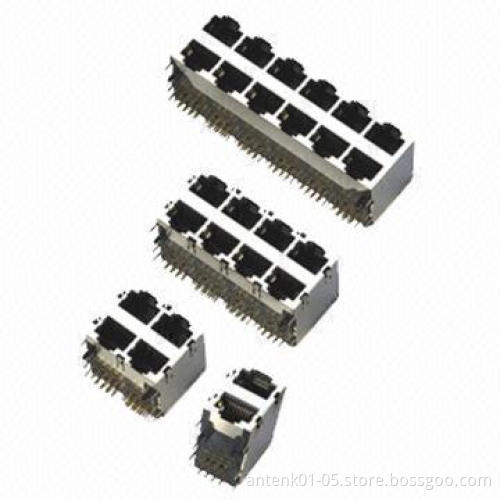

Modular Jack with LED, Shielded, 8P8C, OEM/ODM Orders are Welcome, RoHS Directive-compliant

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal or Western Union

Product Description

Electrical:

Mechanical:

Environmental:

Materials:

Housing material: glass filled polyester ul94v-0, PBT,nylon
Housing color: black or others
Contact material: phosphor bronze Æ0.46mm
Plating: gold plating over nickel gold plating, thicknesses1.5/3/6/15u"/30u"/50u"
Shield: 0.23mm thick brass with nickel plating
LED: optional

Voltage rating: 125V AC RMS

Current rating: 1.5A

Contact resistance: 30m© maximum

Insulation resistance: 500M© min at 500V DC

Dielectric withstanding resistance: 1,000V AC RMS, 50Hz, 1minute

Durability: 750 cycles minute

PCB retention pre-solder: 1lb minute

Storage temperatures: -40-80°C

Operating temperatures: 0-70°C

Housing material: glass filled polyester ul94v-0, PBT,nylon

Housing color: black or others

Contact material: phosphor bronze Æ0.46mm
