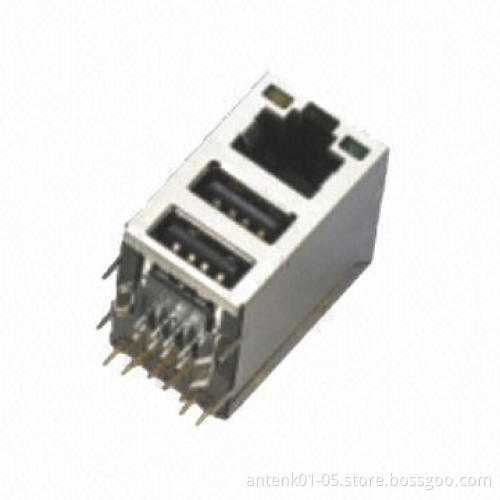

RJ45 Dual-USB Connector with RJ45 Plug Socket Combo USB Jack Adapter, PCB Panel Mount or Wall-type
  • RJ45 Dual-USB Connector with RJ45 Plug Socket Combo USB Jack Adapter, PCB Panel Mount or Wall-type
  • RJ45 Dual-USB Connector with RJ45 Plug Socket Combo USB Jack Adapter, PCB Panel Mount or Wall-type
RJ45 Dual-USB Connector with RJ45 Plug Socket Combo USB Jack Adapter, PCB Panel Mount or Wall-type
RJ45 Dual-USB Connector with RJ45 Plug Socket Combo USB Jack Adapter, PCB Panel Mount or Wall-type

RJ45 Dual-USB Connector with RJ45 Plug Socket Combo USB Jack Adapter, PCB Panel Mount or Wall-type

Get Latest Price
Payment Type:
T/T in Advance, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal or Western Union
Product Description
Product Description
  • Electrical:
    • Voltage rating: 125V AC RMS
    • Current rating: 1.5A
    • Contact resistance: 50m (maximum)
    • Insulation resistance: 500m (minimum) 500V DC
    • Dielectric withstanding resistance: 1,000V AC RMS, 50Hz/1minute
  • Mechanical:
    • Durability: 750 cycles/minute
    • PCB retention PRE-solder: 1lb/minute
  • Environmental:
    • Storage temperature: -40-80°C
    • Operating temperature: 0-70°C
  • Materials:
    • Housing materials: glass filled polyester UL94V-0, PBT,nylon
    • Housing color: black or others
    • Contact material: phosphor bronze Æ0.46mm and T =0.30mm
    • Plating: gold plating over nickel
    • Gold plating thickness: 1.5/3/6/15/30/50u
    • Shield: 0.23mm thick brass with nickel plating
  • Voltage rating: 125V AC RMS
  • Current rating: 1.5A
  • Contact resistance: 50m (maximum)
  • Insulation resistance: 500m (minimum) 500V DC
  • Dielectric withstanding resistance: 1,000V AC RMS, 50Hz/1minute
  • Durability: 750 cycles/minute
  • PCB retention PRE-solder: 1lb/minute
  • Storage temperature: -40-80°C
  • Operating temperature: 0-70°C
  • Housing materials: glass filled polyester UL94V-0, PBT,nylon
  • Housing color: black or others
  • Contact material: phosphor bronze Æ0.46mm and T =0.30mm
  • Plating: gold plating over nickel
  • Gold plating thickness: 1.5/3/6/15/30/50u
  • Shield: 0.23mm thick brass with nickel plating
