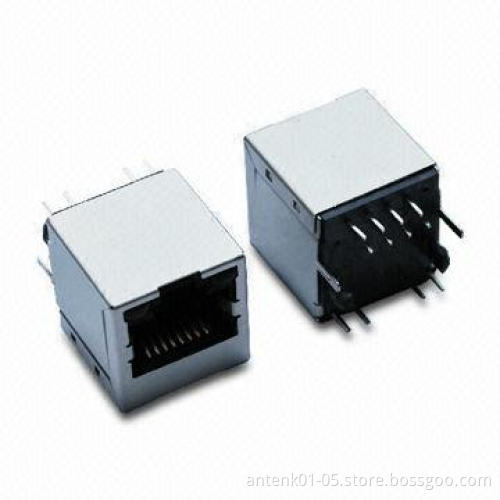

RJ45 Shield Jacks with Transformer, LED and Vertical Type, 0 to 70°C Operating Temperature
  • RJ45 Shield Jacks with Transformer, LED and Vertical Type, 0 to 70°C Operating Temperature
RJ45 Shield Jacks with Transformer, LED and Vertical Type, 0 to 70°C Operating Temperature

RJ45 Shield Jacks with Transformer, LED and Vertical Type, 0 to 70°C Operating Temperature

Get Latest Price
Payment Type:
T/T in Advance, PayPal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal, Western Union
Product Description
Product Description
  • Features:
    • RJ45 connector with integrated magnetic
    • 10/100/1000Mbps Base-T, tab up, and LED/EMI (optional)
    • Top entry PCB jack
    • Storage temperature: -40 to 85°C
    • Compliant with IEEE standards and all 10/100Mbps Ethernet
    • Specifications including 350uH with 8mA DC bias
    • Contact: phosphor bronze, 6-inch gold flashed unlessspecified
    • Housing: thermoplastic PBT and 30% GF UL94V-0 rated
    • Operating temperature: 0 to 70°C
  • Electrical specifications: (25°C)
    • Turns ratio (TX and Rx): 1:1 ±5%
    • Insertion loss:
      • 1 to 80MHz: -1.0dB (maximum)
      • 100MHz: -1.5dB (maximum)
    • Return Loss:
      • 1 to 30MHz: -20dB (minimum)
      • 60 to 80MHz: -12dB (minimum)
    • Common mode rejection:
      • 1 to 100MHz: -30dB (minimum)
      • 200MHz: -20dB (minimum)
    • Crosstalk at 1 to 100MHz: -35dB (minimum)
    • OCL at 100kHz, 0.1V, 8mADC: 350uH (minimum)
    • Hi-pot: 1,500V AC, 1mA, and one second
    • With lead-free process
    • With the RoHS Directive-compliant
  • RJ45 connector with integrated magnetic
  • 10/100/1000Mbps Base-T, tab up, and LED/EMI (optional)
  • Top entry PCB jack
  • Storage temperature: -40 to 85°C
  • Compliant with IEEE standards and all 10/100Mbps Ethernet
  • Specifications including 350uH with 8mA DC bias
  • Contact: phosphor bronze, 6-inch gold flashed unlessspecified
  • Housing: thermoplastic PBT and 30% GF UL94V-0 rated
  • Operating temperature: 0 to 70°C
  • Turns ratio (TX and Rx): 1:1 ±5%
  • Insertion loss:
    • 1 to 80MHz: -1.0dB (maximum)
    • 100MHz: -1.5dB (maximum)
  • Return Loss:
    • 1 to 30MHz: -20dB (minimum)
    • 60 to 80MHz: -12dB (minimum)
  • Common mode rejection:
    • 1 to 100MHz: -30dB (minimum)
    • 200MHz: -20dB (minimum)
  • Crosstalk at 1 to 100MHz: -35dB (minimum)
  • OCL at 100kHz, 0.1V, 8mADC: 350uH (minimum)
  • Hi-pot: 1,500V AC, 1mA, and one second
  • With lead-free process
  • With the RoHS Directive-compliant
  • 1 to 80MHz: -1.0dB (maximum)
  • 100MHz: -1.5dB (maximum)
  • 1 to 30MHz: -20dB (minimum)
  • 60 to 80MHz: -12dB (minimum)
  • 1 to 100MHz: -30dB (minimum)
  • 200MHz: -20dB (minimum)
