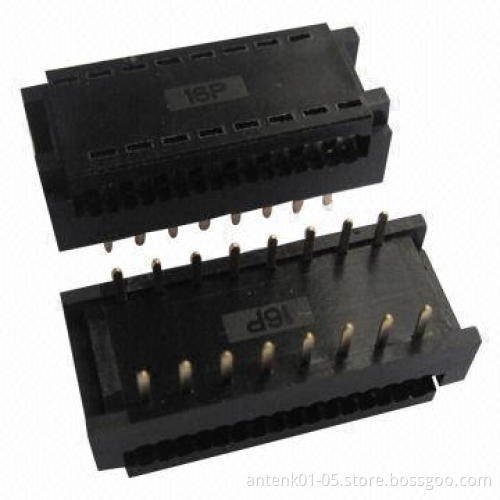

2.54 x 7.62mm IDC DIP Plug Connectors with Brass Contact, Used for Ribbon Cables

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal or Western Union

Product Description

Materials:

Electrical specifications:

Pitch: 2.54 x 7.62mm row distance
Current rating: 1A, 250V AC
Contact resistance: 30M Ohms (maximum)
Insulation resistance: 3,000M Ohms, minute
Dielectric withstanding voltage: 500V AC for one minute
Operating temperature: -40 to +105 degrees Celsius
Terminated with 1.27mm pitch flat ribbon cable
Number of contacts: 06, 08, 10, 12, 14, 16, 20, 24, 26, 30, 32,34, 40, 50, 60 and 64P
With RoHS mark
Used for ribbon cables

Insulator: PBT, glass reinforced, rated UL94V-0

Contact: phosphor bronze or brass

Pitch: 2.54 x 7.62mm row distance

Current rating: 1A, 250V AC

Contact resistance: 30M Ohms (maximum)

Insulation resistance: 3,000M Ohms, minute

Dielectric withstanding voltage: 500V AC for one minute

Operating temperature: -40 to +105 degrees Celsius

Terminated with 1.27mm pitch flat ribbon cable

Number of contacts: 06, 08, 10, 12, 14, 16, 20, 24, 26, 30, 32,34, 40, 50, 60 and 64P

With RoHS mark

Used for ribbon cables
