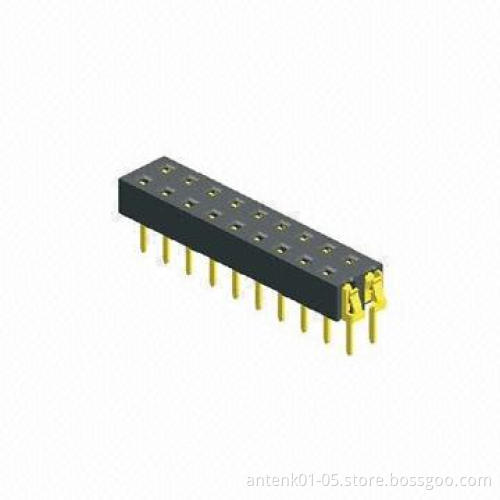

2.0mm Female Header Connector, Straight Dual-row Type, RoHS Compliant
  • 2.0mm Female Header Connector, Straight Dual-row Type, RoHS Compliant
  • 2.0mm Female Header Connector, Straight Dual-row Type, RoHS Compliant
2.0mm Female Header Connector, Straight Dual-row Type, RoHS Compliant
2.0mm Female Header Connector, Straight Dual-row Type, RoHS Compliant

2.0mm Female Header Connector, Straight Dual-row Type, RoHS Compliant

Get Latest Price
Payment Type:
T/T in Advance, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal or Western Union
Product Description
Product Description
  • Materials:
    • Contact pitch: 2.0mm
    • Poles Option: 02 To 80 pos
    • Insulator: 2.8mm
    • Contact: brass or copper alloy
    • Insulator: PBT + 30G.F, UL94V-0 rated
    • Pitch: 2.54mm (2.54 x 2.54/2.00/5.08 are also available)
    • Position: 4 to 100 and double row with insulator
  • Contact plating:
    • Under-plated: 50 to 100¼-inch nickel
    • Contact area: 1 to 30¼-inch selective gold
  • Solder tail area:
    • 100¼-inch tin/lead (brighten tin) or
    • 100¼-inch tin/lead free (brighten tin/matte tin)
  • Electrical:
    • Operation voltage: 250V AC (maximum)
    • Current rating: 3A (maximum)
    • Contact resistance: 15 to 20m© (maximum)
    • Insulation resistance: 1,000 to 5,000M© (minimum) at 500VDC
    • Dielectric withstanding voltage: 1,000V AC/minute
    • Operating temperatures: -40 to 105°C
    • Maximum processing temperature: 230°C for 60 seconds
    • Maximum processing temperature: 260°C for 10 seconds
  • OEM and ODM orders welcome
  • Contact pitch: 2.0mm
  • Poles Option: 02 To 80 pos
  • Insulator: 2.8mm
  • Contact: brass or copper alloy
  • Insulator: PBT + 30G.F, UL94V-0 rated
  • Pitch: 2.54mm (2.54 x 2.54/2.00/5.08 are also available)
  • Position: 4 to 100 and double row with insulator
  • Under-plated: 50 to 100¼-inch nickel
  • Contact area: 1 to 30¼-inch selective gold
  • 100¼-inch tin/lead (brighten tin) or
  • 100¼-inch tin/lead free (brighten tin/matte tin)
  • Operation voltage: 250V AC (maximum)
  • Current rating: 3A (maximum)
  • Contact resistance: 15 to 20m© (maximum)
  • Insulation resistance: 1,000 to 5,000M© (minimum) at 500VDC
  • Dielectric withstanding voltage: 1,000V AC/minute
  • Operating temperatures: -40 to 105°C
  • Maximum processing temperature: 230°C for 60 seconds
  • Maximum processing temperature: 260°C for 10 seconds
