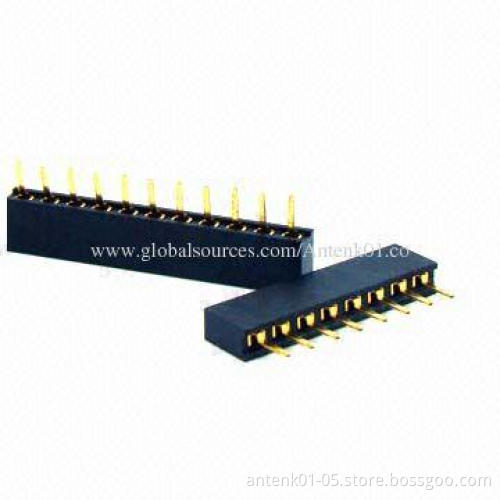

2.0mm Female Headers with High-profile 4.3mm, Single Row, Straight Type, RoHS Compliant
  • 2.0mm Female Headers with High-profile 4.3mm, Single Row, Straight Type, RoHS Compliant
  • 2.0mm Female Headers with High-profile 4.3mm, Single Row, Straight Type, RoHS Compliant
2.0mm Female Headers with High-profile 4.3mm, Single Row, Straight Type, RoHS Compliant
2.0mm Female Headers with High-profile 4.3mm, Single Row, Straight Type, RoHS Compliant

2.0mm Female Headers with High-profile 4.3mm, Single Row, Straight Type, RoHS Compliant

Get Latest Price
Payment Type:
T/T in Advance, PayPal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal, Western Union
Product Description
Product Description
  • Contact pitch: 2.0mm
  • Poles option: 02 to 40 poles
  • Insulator: 4.3mm
  • Current rating: 3.0A
  • Insulation resistance: 1,000MΩ (minimum)
  • Dielectric withstanding: 500V AC/DC
  • Contact resistance: 20MΩ (maximum)
  • Operating temperature: -40 to 105°C
  • Materials:
    • Contact material: phosphor bronze
    • Insulation materials: polyester, (UL 94V-O) PA6T
  • Contact material: phosphor bronze
  • Insulation materials: polyester, (UL 94V-O) PA6T
