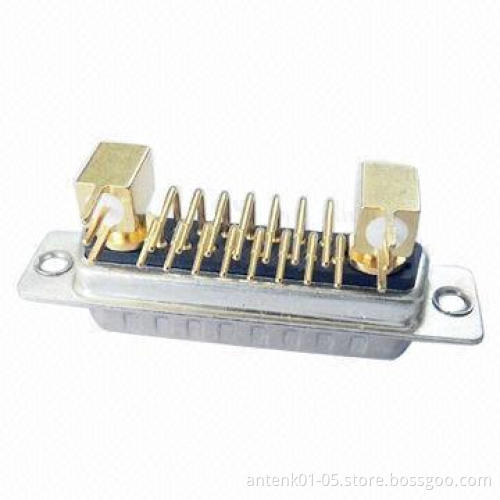

High Power D-SUB Connector, Coaxial 17W2 R/A PCB Male DIP Type, OEM and ODM Orders are Welcome

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal or Western Union

Product Description

Specifications:

Shell: steel material, front shell nickel finished, back shellnickel finished
Insulator: PBT thermoplastic, 30% glass filled, UL 94V-0 rated,white or black color
Contact material: brass
Contact finish: full 1-30u gold
Signal contact materials: brass, full gold flash
Coaxial insulator: Teflon UL 94V-0 white color
Coaxial contact impedance: 75Ω
Rated current: for heavy current contact 30A, for signalcontact 5A
Contact resistance: for heavy current contact 30A, for signalcontact 5A
Dielectric withstanding voltage: 1,000V AC for 1min
Insulation resistance: 5000mΩ minimum
Temperature rating: -55-+125°C
Coaxial contact impedance: 75&3937;
OEM and ODM orders welcome
