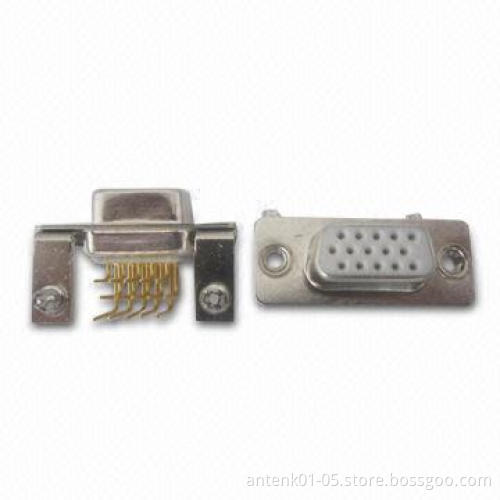

High-density D-sub Connectors, Machined Contact, Right Angle, Female or Male Type
  • High-density D-sub Connectors, Machined Contact, Right Angle, Female or Male Type
  • High-density D-sub Connectors, Machined Contact, Right Angle, Female or Male Type
High-density D-sub Connectors, Machined Contact, Right Angle, Female or Male Type
High-density D-sub Connectors, Machined Contact, Right Angle, Female or Male Type

High-density D-sub Connectors, Machined Contact, Right Angle, Female or Male Type

Get Latest Price
Payment Type:
T/T in Advance, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal or Western Union
Product Description
Product Description
  • Features:
    • Machined pin, PBC mount, right angle male and female type, 3rows, with metal bracket
    • Contact positions: 15 pins
    • Available in plug, right angle styles
    • Provides ground continuity from cable-to-PC board
    • Available in 3 types of body length (8.08, 9.4 and 14.98mm)measured from front face, of mounting flange to first row ofcontacts
    • Optional plating available
    • Various options of fasten types
    • Mates with industry compatible connectors
  • Materials:
    • Contacts: brass
    • Housing: PBT + 30% glass-fiber (UL 94V-0)
    • Shell: cold roller steel
  • Electrical characteristics:
    • Current rating: 5A
    • Withstanding voltage: 1,250Vrms AC
    • Insulation resistance: 5,000MΩ (minimum) at 500V DC
    • Contact resistance: 15MΩ (maximum)
    • Operating temperatures: 55 to 105°C
  • Mechanical characteristics:
    • Contact resistance force: 341g (maximum)
    • Contact separation force: 20g (minimum)
  • Finishes:
    • Contact: gold flash, 10, 15, 30 and 50 micro inches
    • Shells: nickel-plated and tin-plated
  • Machined pin, PBC mount, right angle male and female type, 3rows, with metal bracket
  • Contact positions: 15 pins
  • Available in plug, right angle styles
  • Provides ground continuity from cable-to-PC board
  • Available in 3 types of body length (8.08, 9.4 and 14.98mm)measured from front face, of mounting flange to first row ofcontacts
  • Optional plating available
  • Various options of fasten types
  • Mates with industry compatible connectors
  • Contacts: brass
  • Housing: PBT + 30% glass-fiber (UL 94V-0)
  • Shell: cold roller steel
  • Current rating: 5A
  • Withstanding voltage: 1,250Vrms AC
  • Insulation resistance: 5,000MΩ (minimum) at 500V DC
  • Contact resistance: 15MΩ (maximum)
  • Operating temperatures: 55 to 105°C
  • Contact resistance force: 341g (maximum)
  • Contact separation force: 20g (minimum)
  • Contact: gold flash, 10, 15, 30 and 50 micro inches
  • Shells: nickel-plated and tin-plated
