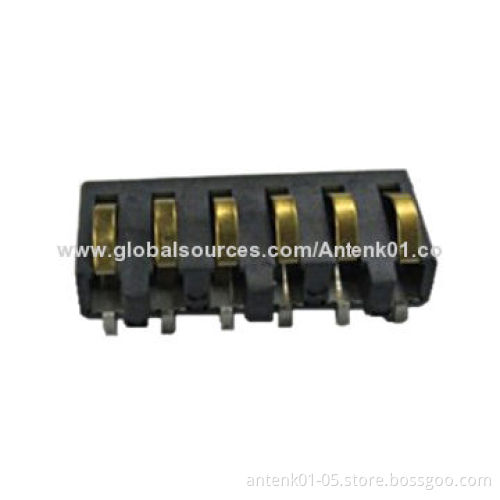

3.5mm Pitch 4P/6P SMT Battery Connectors with 2.0A Current Rating
  • 3.5mm Pitch 4P/6P SMT Battery Connectors with 2.0A Current Rating
  • 3.5mm Pitch 4P/6P SMT Battery Connectors with 2.0A Current Rating
  • 3.5mm Pitch 4P/6P SMT Battery Connectors with 2.0A Current Rating
3.5mm Pitch 4P/6P SMT Battery Connectors with 2.0A Current Rating
3.5mm Pitch 4P/6P SMT Battery Connectors with 2.0A Current Rating
3.5mm Pitch 4P/6P SMT Battery Connectors with 2.0A Current Rating

3.5mm Pitch 4P/6P SMT Battery Connectors with 2.0A Current Rating

Get Latest Price
Payment Type:
T/T in Advance, PayPal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal, Western Union
Product Description
Product Description
  • Materials:
    • Pin: beryllium copper
    • Insulator: 30% glass-filled thermoplastic LCP or equivalent UL94V-0, black
    • Finishing: contact: gold flash (1° minute) all over, 50-100 micro-inch, (1.27-2.54 micron) nickel under plated all over solar
    • Tab:
      • 50-100 (1.24-2.54 micron) micro inch matte tin,
      • 10-100 micro inch (1.27-2.54 micron nickel-plated
  • Electrical specifications:
    • Voltage rating: 250V AC (minimum)
    • Current rating: 2.0A (minimum)
    • Dielectric strength: 1,000V AC for 1 minute (minimum)
    • Insulation: resistance: 1,000 mega Ohms (maximum)
    • Contact resistance: 30m Ohms (maximum)
    • Product withstanding reflow soldering 260° for 105
  • Mechanical specifications:
    • Durability: 5.000 cycles
    • Normal force: AT mated position: 60g (minimum)
    • Normal force at full stoke: 100g (minimum)
    • Parts to BT packaged in anti-static tape and reel for automatic placement
    • The cavity ## IS 0.8+-0.1mm high with 0.10+-0.10mm
    • Recessed from surface
  • Pin: beryllium copper
  • Insulator: 30% glass-filled thermoplastic LCP or equivalent UL94V-0, black
  • Finishing: contact: gold flash (1° minute) all over, 50-100 micro-inch, (1.27-2.54 micron) nickel under plated all over solar
  • Tab:
    • 50-100 (1.24-2.54 micron) micro inch matte tin,
    • 10-100 micro inch (1.27-2.54 micron nickel-plated
  • 50-100 (1.24-2.54 micron) micro inch matte tin,
  • 10-100 micro inch (1.27-2.54 micron nickel-plated
  • Voltage rating: 250V AC (minimum)
  • Current rating: 2.0A (minimum)
  • Dielectric strength: 1,000V AC for 1 minute (minimum)
  • Insulation: resistance: 1,000 mega Ohms (maximum)
  • Contact resistance: 30m Ohms (maximum)
  • Product withstanding reflow soldering 260° for 105
  • Durability: 5.000 cycles
  • Normal force: AT mated position: 60g (minimum)
  • Normal force at full stoke: 100g (minimum)
  • Parts to BT packaged in anti-static tape and reel for automatic placement
  • The cavity ## IS 0.8+-0.1mm high with 0.10+-0.10mm
  • Recessed from surface
