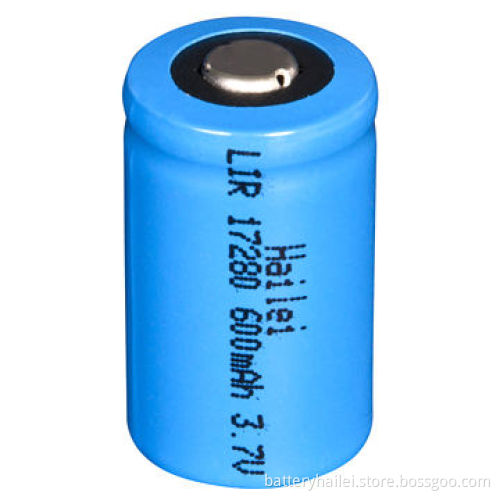

Li-ion Battery 17280 with 3.7V, 600mAh, UL/UN-approved, Compliant with the RoHS Directive

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Nominal voltage: 3.7V
Nominal capacity: 600mAh
Charging voltage 4.2V
Discharging end voltage: 3.0V
Lifespan: 500 times
Standard charging current: 0.2C
Standard discharging current: 0.2C
Continuous charging current: 1C (maximum)
Continuous discharging current: 1.5C (maximum)
Charging temperature: 0 to 45°C
Discharging temperature: -10 to 60°C
Storage temperature: -20 to 60°C
Dimensions: Ø16.5 x (H) 28.0mm
Weight: approximately 15g

Features:

High voltage and energy density
Long cycle lifespan
No memory effect and eco-friendly
Individual Li-ion battery can be assembled in parallel orseries into stacks as per customer request
Li-ion battery PCB and packs are available
OEM orders are welcome
Certificates: UL and UN
Compliant with the RoHS Directive

Applications: mobile phones, notebook computers, digitalcameras, digital camcorders, portable DVD, MD, CD players, MP3,PDAs, electric bicycles, LED lighting and satellite communicationsystems

Nominal voltage: 3.7V

Nominal capacity: 600mAh

Charging voltage 4.2V

Discharging end voltage: 3.0V

Lifespan: 500 times

Standard charging current: 0.2C

Standard discharging current: 0.2C

Continuous charging current: 1C (maximum)

Continuous discharging current: 1.5C (maximum)

Charging temperature: 0 to 45°C

Discharging temperature: -10 to 60°C

Storage temperature: -20 to 60°C
