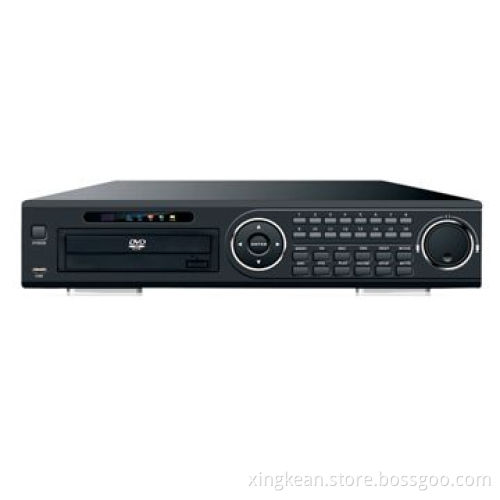

DVR, H.264/4CH D1 Record/Playback, HDMI/VGA/TV/Spot Output, Alarm, E-SATA, Mobile Surveillance, ATX

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Functions:

High-performance CPU, HDMI/VGA/TV/spot out simultaneous videooutput
H.264 dual-stream video compression
Full channel D1 real-time recording
Supports 4 channels D1 full-real time recording,network-transmission and playback and 4 channels CIF/QCIF sub-codestream simultaneously
Zoom functions in both preview and playback
Supports varied PTZ control protocol and embedded web visiting,supports HTTP, SMTP, DDNS, DHCP, PPPOE and NAT traversing
Built-in DDNS make the network connection very easy andsimple
UPnP (universal plug-and-play) no need to forward ports in therouter
Supports movable hard-disk backup

Parameters:

Main processor: dual-core embedded processor
Operation system: Embedded Linux
Control: USB mouse, wireless mouse, IR remote, front panel andnetwork
Image split: 1/4
Video standards:
PAL: 625 lines, 50f/second
NTSC: 525 lines, 60f/second

Video compression: H.264

Preview and playback quality:

D1: PAL (720 x 576), NTSC (720 x 480)

Sync playback: 1 to 8 channels D1 (real time)

Video detection: motion detection

MD zones: 396 (22 x 18), video loss and camera blank

Audio compression: G711A

Intercom: supported

Record modes: manual, alarm, motion and timing

Record rate:

PAL: 1 to 25fps
NTSC: 1 to 30fps

Video search: time/date, alarm, motion detection, log, eventand channel

Recording storage: local HDD, network

Backup modes: network, flash disk, movable HDD, internal SATAburner

Video input: 4 BNC

Audio input: 4 RCA

Video output: 1 HDMI, 1 VGA, 1 BNC and 1 spot out

Audio output: 1 RCA

PTZ: 1RS 485

USB: 2 USB2.0

SATA: 4HDD (or 3HDD+ 1CD/DVD RW)

E-SATA: supported

Loop-out: supported

Mobile surveillance: supports iPhone, Google's Android,Symbian, Microsoft's Windows, RIM's BlackBerry

Power supply range: 110 to 240V AC, 50/60Hz

High-performance CPU, HDMI/VGA/TV/spot out simultaneous videooutput

H.264 dual-stream video compression

Full channel D1 real-time recording

Supports 4 channels D1 full-real time recording,network-transmission and playback and 4 channels CIF/QCIF sub-codestream simultaneously

Zoom functions in both preview and playback

Supports varied PTZ control protocol and embedded web visiting,supports HTTP, SMTP, DDNS, DHCP, PPPOE and NAT traversing

Built-in DDNS make the network connection very easy andsimple

UPnP (universal plug-and-play) no need to forward ports in therouter

Supports movable hard-disk backup

Main processor: dual-core embedded processor

Operation system: Embedded Linux

Control: USB mouse, wireless mouse, IR remote, front panel andnetwork

Image split: 1/4

Video standards:

PAL: 625 lines, 50f/second

NTSC: 525 lines, 60f/second

D1: PAL (720 x 576), NTSC (720 x 480)

PAL: 1 to 25fps

NTSC: 1 to 30fps
