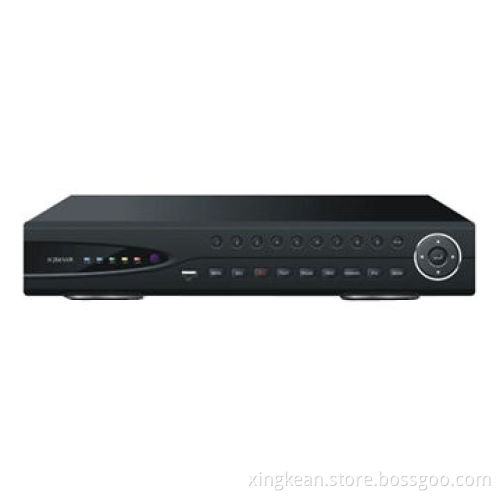

ONVIF Hybrid DVR with HDMI Output, Built-in DDNS, 2HDD, Alarm and Maximum 8CH Sync Playback

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	100% T/T Payment before Delivery

Product Description

Main chipset: Hi3521

Operating system: Embedded Linux

Mode: NVR mode and hybrid mode optional

CVBS input: 8CH BNC

Audio input: 4CH BNC

Intercom: 1CH phonic intercom, BNC interface

Protocol: ONVIF core spec 2.2

IPC input:

Video output: 1CH BNC, 1CH VGA, 1CH BNC output

Audio output: 1CH BNC

Analog resolution: D1

Video compression: H.264

Max coding capacity: 8CH D1

Audio compression: G711A

IP resolution:

Main code stream:1,080P/960P/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Auxiliary stream: d4CIF
Playback: maximum 8CH sync playback
Motion detection: each channel can set up 396 (22 x 18) motiondetection zones and multiple sensitivity
SATA interface: 2SATA
Network: 1 RJ45, 10M/100M self-adjusted Ethernet interface
Alarm: 8CH input, 3CH output
PTZ: 1 RS485
Dimension: 1.5U, 360 x 260 x 60mm
Temperatures: -10 to 55°C
Humidity range: 10 to 90% RH
