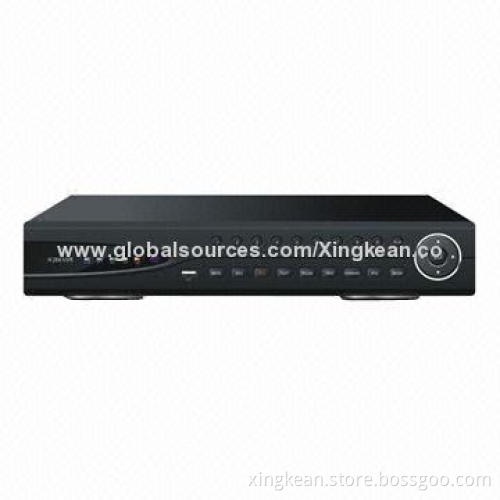

Hybrid DVR, Supports 4CH D1 Analog and 4CH D1 IP/4CH 720P/2CH 1,080P, Onvif Protocol

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	100% T/T Payment before Delivery

Product Description

Features:

Main chipset: Hi3520A
Operating system: Embedded Linux
Mode: NVR mode and hybrid mode (optional)
CVBS input: 4CH BNC
Audio input: 2CH BNC
Intercom: 1CH phonic intercom, BNC interface
Protocol: Onvif core specifications 2.2
IPC input:
- NVR mode: 6CH D1/6CH 720P/4CH 1,080P at 30fps
- Hybrid mode: 4CH D1/4CH 720P/4CH 1,080P at 30fps
Video output: 1CH BNC, 1CH VGA, 1CH BNC output
Audio output: 1CH BNC
Analog resolution: D1
Video compression: H.264
Maximum coding capacity: 4CH D1
Audio compression: G711A
IP resolution:
- Main code stream: 1,080/960/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Auxiliary stream: ≤4CIF
Playback: 4CH maximum synchronization playback
Motion detection: each channel can setup 396 (22 x 18) motion detection zones and multiple sensitivity
SATA interface: 2 SATA
Network: 1 RJ45, 10/100Mbps self-adjusted Ethernet interface
Alarm: 8CH input, 3CH output
PTZ: 1 RS485
Dimensions: 1.5U, 360 x 260 x 60mm
Temperature: -10 to 55°C
Humidity: 10 to 90% RH
