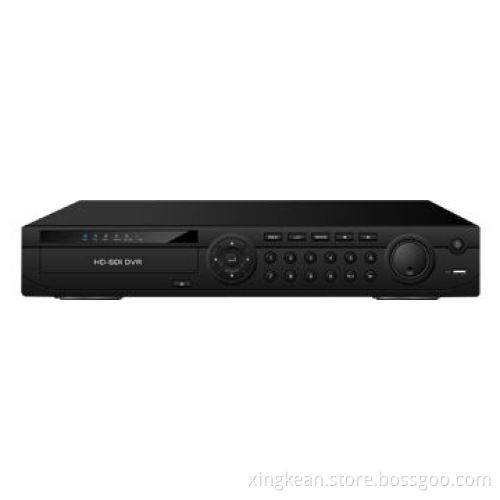

4CH DVR with HD-SDI Video 1080p Real-time Live View, Supports 4HDD (Maximum 8TB), E-SATA and DVD-RW

Get Latest Price

Payment Type:: 100% T/T Payment before Delivery

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	100% T/T Payment before Delivery

Product Description

Functions:

HD-SDI video 1080p real-time live view
High-performance CPU, HDMI/VGA/TV simultaneous videooutput
H.264 dual-stream video compression
4CH synchronous real-time playback, GRID interface and smartsearch
Supports varied PTZ control protocol and embedded web visiting,supports HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP,DNS, PPPOE, DDNS, FTP, IP filter, alarm server
Six operations simultaneously, record, playback, networktransferring, backup, mobile surveillance and UI operating

Parameters:

Main processor: Dual-core embedded processor
Operation system: Embedded Linux
Control: USB mouse, wireless mouse, IR remote, front panel andnetwork
HD-SDI input: 4CH h 1080P/1080I/7209
Audio input: 4 x BNC
Intercom: supported
Video output: 1 x HDMI, 1 x VGA, 1 x TV, BNC
Preview resolution: 1,920 x 1,080, 1,280 x 1,024, 1,280 x 720,1,024 x 768
Audio output: 1 x BNC
Video compression: H.264
Record model: manual>alarm>motion>timing
Record resolution: 10,809 (1,920 x 1,082), 720P (1,280 x 720),D1 (704 x 576/704 x 480), CIF (352 x 288/352 x 240)
Encode resolution: maximum 4CH 1080P
Record rate:

PAL: 1 to 25fps

NTSC: 1 to 30fps
Audio compression: G711A
Motion detection:
MD zones: 396 (22 x 18)
Privacy masking: 4 rectangular zones (each camera)
Snapshot: JEPG format
SATA: 4HDD (3HDDs + 1CD/DVD-RW), up to 8TB
E-SATA: supported
DVD-RW: supported
Network: RJ45 10M/100M/1,000M self-adjusted Ethernetinterface
USB: 2 USB 2.0
Alarm: 8CH input, 4CH output
RS485: for PTZ control
RS232: for PC communication and keyboard
Mobile surveillance: supports iPhone, Android, Symbian, Windowsand BlackBerry
Power supply range: AC 110 to 240V, 50 to 60Hz
Working temperatures: -10 to 55°C/10 to 90RH/86 to106kPa
Dimensions: 1.5U case (L x W x H) 445 x 374 x 70mm

HD-SDI video 1080p real-time live view

High-performance CPU, HDMI/VGA/TV simultaneous videooutput

H.264 dual-stream video compression

4CH synchronous real-time playback, GRID interface and smartsearch

Supports varied PTZ control protocol and embedded web visiting,supports HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP,DNS, PPPOE, DDNS, FTP, IP filter, alarm server

Six operations simultaneously, record, playback, networktransferring, backup, mobile surveillance and UI operating

Main processor: Dual-core embedded processor

Operation system: Embedded Linux

Control: USB mouse, wireless mouse, IR remote, front panel andnetwork

HD-SDI input: 4CH h 1080P/1080I/7209

Audio input: 4 x BNC

Intercom: supported

Video output: 1 x HDMI, 1 x VGA, 1 x TV, BNC

Preview resolution: 1,920 x 1,080, 1,280 x 1,024, 1,280 x 720,1,024 x 768

Audio output: 1 x BNC

Video compression: H.264

Record model: manual>alarm>motion>timing
