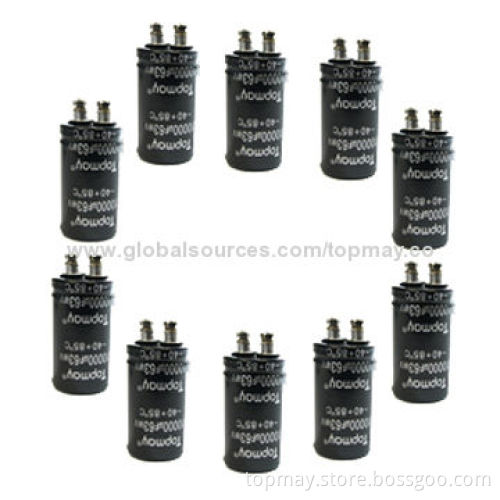

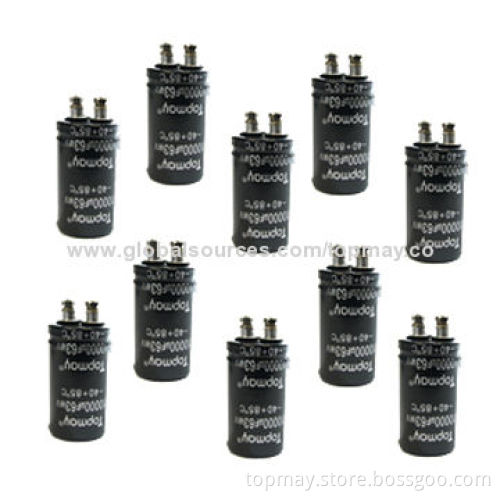

Aluminum Electrolytic Capacitors with 10 to 100 and 160 to 400V Rated Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Features:

Rated voltage range: 10 to 100 and 160 to 400V
Operating temperature range: -40 to 105°C and -25 to105°C
Capacitance tolerance (25°C, 120Hz): 0 to 20%
Leakage current: 5mA, whichever is smaller (at 25°C, after5 minutes)
C: nominal capacitance
V: rated voltage
Temperature stability (120Hz): capacitance change
10 to 100V DC: capacitance at -40°C shall not be less than60% of the 25°C value
160 to 400V DC: capacitance at -25°C shall not be less than70% of the 25°C value
Load lifespan (105°C): 2,000 hours
Leakage current: not more than the specified value
Capacitance change: within ± 20% of the initial value
Dissipation factor: not more than 200% of the specified value
Shelf lifespan (105°C): 2,000 hours
Leakage current: not more than the specified value
Capacitance change: within ± 20% of the initial value
Dissipation factor: not more than 200% of the specified value
After-test: UR to be applied for 60 minutes, 24 to 48 hours before measurement
