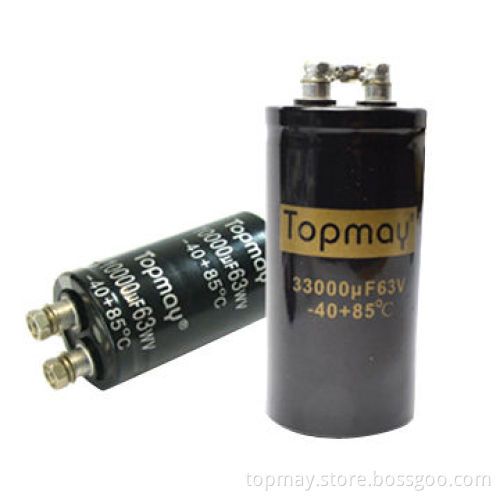

Electrolytic Capacitor with 0 to 20% Tolerance and 10 to 100/160 to 400V Rated VoltagesNew
  • Electrolytic Capacitor with 0 to 20% Tolerance and 10 to 100/160 to 400V Rated VoltagesNew
Electrolytic Capacitor with 0 to 20% Tolerance and 10 to 100/160 to 400V Rated VoltagesNew

Electrolytic Capacitor with 0 to 20% Tolerance and 10 to 100/160 to 400V Rated VoltagesNew

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Rated voltage range: 10 to 100V and 160 to 400V
    • Capacitance tolerance (25°C 120Hz): 0 to 20%
    • Leakage current (μA): 0.02CV or 5mA, whichever is smaller (at 25°C after five minutes)
    • C: nominal capacitance (μF)
    • V: rated voltage (V)
    • Dissipation factor (25° and 120Hz): TTND shall not exceed the values shown in the table of standard ratings
    • Temperature stability (120Hz): capacitance change
    • 10 to 100V DC: capacitance at -40°C shall not be less than 60% of the 25°C value
    • 160 to 400V DC: capacitance at -25°C shall not be less than 70% of the 25°C value
  • Load and shelf lifespan (85°C):
    • Time: 2,000 hours
    • Leakage current: not more than specified value
    • Capacitance change: within ±20% of initial value
    • Dissipation factor: ≤200% of specified value
    • After test: UR to be applied for 60 minutes, 24 to 48 hours before measurement
    • Suitable for switching power supply
    • Operating temperature range: -40 to 85 and -25 to 85°C
  • Rated voltage range: 10 to 100V and 160 to 400V
  • Capacitance tolerance (25°C 120Hz): 0 to 20%
  • Leakage current (μA): 0.02CV or 5mA, whichever is smaller (at 25°C after five minutes)
  • C: nominal capacitance (μF)
  • V: rated voltage (V)
  • Dissipation factor (25° and 120Hz): TTND shall not exceed the values shown in the table of standard ratings
  • Temperature stability (120Hz): capacitance change
  • 10 to 100V DC: capacitance at -40°C shall not be less than 60% of the 25°C value
  • 160 to 400V DC: capacitance at -25°C shall not be less than 70% of the 25°C value
  • Time: 2,000 hours
  • Leakage current: not more than specified value
  • Capacitance change: within ±20% of initial value
  • Dissipation factor: ≤200% of specified value
  • After test: UR to be applied for 60 minutes, 24 to 48 hours before measurement
  • Suitable for switching power supply
  • Operating temperature range: -40 to 85 and -25 to 85°C
