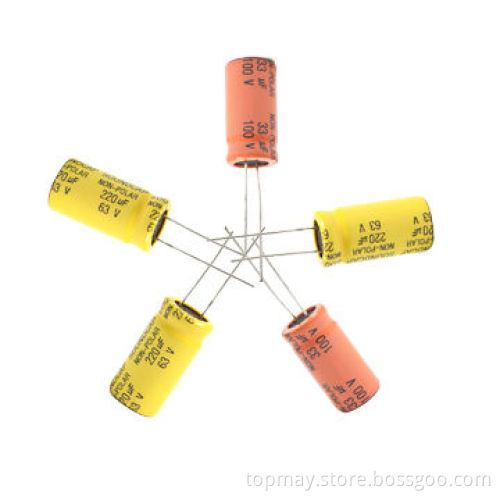

Aluminum Electrolytic Capacitor with -40 to 85 and -25 to 85°C Operating TemperatureNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Rated voltage range: 6.3 to 100V

Capacitance tolerance (20°, 120Hz): ±20%

Capacitance range: 0.1 to 4,700uF

After minute application of rated voltage I≤0.003CV + 3uA

C: nominal capacitance

V: rated voltage

Dissipation factor: WV (V) 6.3 to 10, 16 to 25, 35, 50, 63 and 100

Tan: 0.24, 0.20, 0.16, 0.14, 0.12 and 0.10 (maximum)

Capacitance change: ≤20% of the initial value

Dissipation factor: ≤200% of the specified value

Leakage current: ≤ the specified value

Capacitance change: ≤20% of the initial value

Dissipation factor: ≤150% of the specified value

Load lifespan: 2,000 hours at 85°C

Suitable for use in circuits, whose polarity is sometimes reversed

Case size: larger than 5mm diameter

With safety vents

Operating temperature range: -40 to 85 and -25 to 85°C
