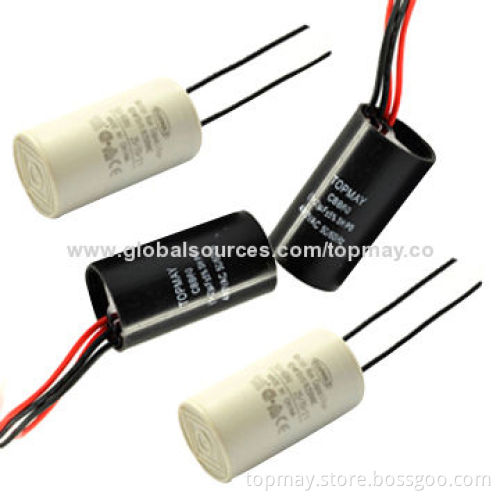

Polypropylene Film/Power Capacitors, 250 to 500V AC Rated Voltage and 8 to 100uF Capacitance Range

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Specifications:

Features:

Plastic cylinder out-shell are fire resistant, sealed by resin with lead out structure
Small, light and good self-healing
Make the use of edge thickening moralized film
Apply to 50 to 60Hz AC single-phase motor from start and running
Widely used as startup
Suitable for running capacitor that is special for micro water pump
Cleaning machine, washing machine and single-phase water pump motor
Can bear impact current

Reference standard: GB3667-1997 (IEC 252)

Climatic categories: 40, 70 and 21

Rated voltage: 250 to 500V AC

Capacitance range: 8 to 100uF

Capacitance tolerance: 5 (J), 10 (K) and ±20% (M)

Voltage resistance: 1.6UR (5 seconds, 2,000V AC)

Dissipation factor: ≤0.4%

Insulation resistance: ≥4,000 seconds

Non-inductively wound with metalized polypropylene film

Plastic cylinder out-shell are fire resistant, sealed by resin with lead out structure

Small, light and good self-healing

Make the use of edge thickening moralized film
