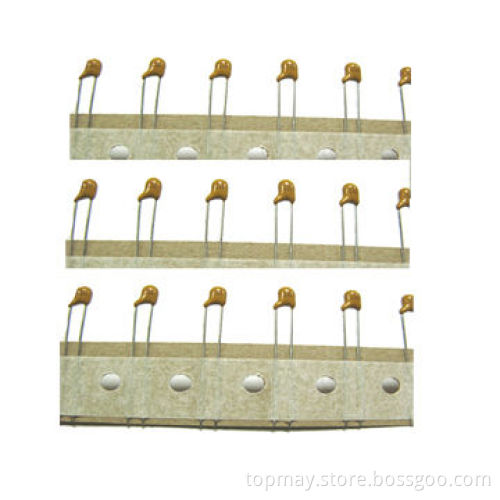

Multilayer Ceramic Capacitors with 100V/DC Rated Voltage and 0R5 to 104 Capacitance RangeNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Capacitance range: 0R5 to 104

Insulation resistance:

Withstanding voltage: 2.5 times of working voltage

Dissipation factor: 0.15% maximum (20°C, 1MHz, 1V DC)

Rated voltages: 25, 50, 63 and 100V/DC

Capacitance tolerances:

Lifespan test: 200% rated voltage at 125°C 1,000 hours

Solder-ability: SJ/10211-91 4.11

Resistance to soldering heat: SJ/T10211-91 4.10

Mechanical test: SJ/T10211-91 4.9

Temperature cycling: SJ/T10211-91 4.12

Moisture resistance: SJ/T10211-91 4.14

Termination adhesion strength: SJ/T10211-91 4.9

Environment testing: SJ/T10211-91 4.13

Tape and reel available for automatic placement

Various lead spacing are available

C: ≤ or ≥10nF

R: ≥10,000MΩ

CR: ≥100Ω

B: ±0.1pF

C: ±0.25pF

D: ±0.5pF

F: ± 1%

G: ± 2%

J: ± 5%

K: ± 10%

M: ± 20%
