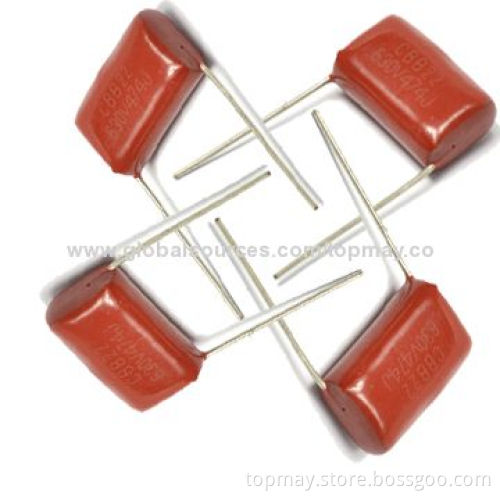

Polypropylene Film Capacitor with Epoxy Resin Coating and High-insulation Resistance
  • Polypropylene Film Capacitor with Epoxy Resin Coating and High-insulation Resistance
Polypropylene Film Capacitor with Epoxy Resin Coating and High-insulation Resistance

Polypropylene Film Capacitor with Epoxy Resin Coating and High-insulation Resistance

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Features:
    • Epoxy resin coating
    • Low-dissipation factor with high-frequency
    • Small inherent temperature rise
    • High-insulation resistance and good self-healing property
    • Suitable for DC, pulse, high-frequency and high-current circuits
    • S-shaping correction of color TV sets
  • Specifications:
    • Insulation resistance:
      • CR: ≤0.33μF ≥12,500MΩ UR ≤100V
      • CR: greater than 0.33μF ≥3,750MΩ UF UR ≤100V
      • CR: greater than 0.33μF ≥25,000MΩ UR >100V
      • CR: ≤0.33μF ≥7,500MΩ UF UR >100V
    • Climatic category: 55, 85 and 21
    • Rated voltages: 100, 250, 400 and 630V
    • Capacitance range: 0.01 to 3.3μF
    • Capacitance tolerance (J x K): ±5 and 10%
    • Voltage resistance: 1.5UR (1 to 5 seconds)
    • Dissipation factor (1kHz):
      • CR ≤1μF ≤0.2%
      • CR greater than 1uF ≤0.3%
  • Epoxy resin coating
  • Low-dissipation factor with high-frequency
  • Small inherent temperature rise
  • High-insulation resistance and good self-healing property
  • Suitable for DC, pulse, high-frequency and high-current circuits
  • S-shaping correction of color TV sets
  • Insulation resistance:
    • CR: ≤0.33μF ≥12,500MΩ UR ≤100V
    • CR: greater than 0.33μF ≥3,750MΩ UF UR ≤100V
    • CR: greater than 0.33μF ≥25,000MΩ UR >100V
    • CR: ≤0.33μF ≥7,500MΩ UF UR >100V
  • Climatic category: 55, 85 and 21
  • Rated voltages: 100, 250, 400 and 630V
  • Capacitance range: 0.01 to 3.3μF
  • Capacitance tolerance (J x K): ±5 and 10%
  • Voltage resistance: 1.5UR (1 to 5 seconds)
  • Dissipation factor (1kHz):
    • CR ≤1μF ≤0.2%
    • CR greater than 1uF ≤0.3%
  • CR: ≤0.33μF ≥12,500MΩ UR ≤100V
  • CR: greater than 0.33μF ≥3,750MΩ UF UR ≤100V
  • CR: greater than 0.33μF ≥25,000MΩ UR >100V
  • CR: ≤0.33μF ≥7,500MΩ UF UR >100V
  • CR ≤1μF ≤0.2%
  • CR greater than 1uF ≤0.3%
