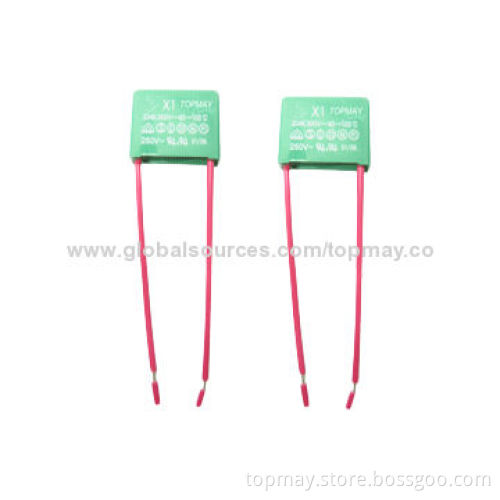

Polypropylene Film Capacitor with 2.5kV Impulse Voltage and 0.0022 to 4.7μF Capacitance
  • Polypropylene Film Capacitor with 2.5kV Impulse Voltage and 0.0022 to 4.7μF Capacitance
Polypropylene Film Capacitor with 2.5kV Impulse Voltage and 0.0022 to 4.7μF Capacitance

Polypropylene Film Capacitor with 2.5kV Impulse Voltage and 0.0022 to 4.7μF Capacitance

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Features:
    • Box-type provides identical outer appearance
    • Very low-loss at high-frequency and suitable for high-current
    • High-insulation resistance and long lifespan due to self-healing effect
    • Withstanding 2.5kV impulse voltage and class X1
    • As an across the line type noise suppression capacitor
    • Suitable for AC purpose
    • Non-inductively wound with metalized polypropylene film
  • Specifications:
    • Reference standard: GB/t14472-1998 (1CE60384-14)
    • Climatic category: 40, 100 and 21
    • Rated voltage: 280V AC
    • Capacitance range: 0.0022 to 4.7μF
    • Capacitance tolerance: ±5 (J), 10 (K) and 20% (M)
    • Voltage resistance: 4.3Vr (five seconds)
    • Dissipation factor:
      • ≤0.15% CR≤1.0μF
      • ≤0.3% CR: 1.0μF (20°C, 10kHz)
    • Insulation resistance:
      • ≥30,000 seconds (CR ≤0.33°F)
      • ≥10,000 seconds (CR ≥0.33°F)
  • Box-type provides identical outer appearance
  • Very low-loss at high-frequency and suitable for high-current
  • High-insulation resistance and long lifespan due to self-healing effect
  • Withstanding 2.5kV impulse voltage and class X1
  • As an across the line type noise suppression capacitor
  • Suitable for AC purpose
  • Non-inductively wound with metalized polypropylene film
  • Reference standard: GB/t14472-1998 (1CE60384-14)
  • Climatic category: 40, 100 and 21
  • Rated voltage: 280V AC
  • Capacitance range: 0.0022 to 4.7μF
  • Capacitance tolerance: ±5 (J), 10 (K) and 20% (M)
  • Voltage resistance: 4.3Vr (five seconds)
  • Dissipation factor:
    • ≤0.15% CR≤1.0μF
    • ≤0.3% CR: 1.0μF (20°C, 10kHz)
  • Insulation resistance:
    • ≥30,000 seconds (CR ≤0.33°F)
    • ≥10,000 seconds (CR ≥0.33°F)
  • ≤0.15% CR≤1.0μF
  • ≤0.3% CR: 1.0μF (20°C, 10kHz)
  • ≥30,000 seconds (CR ≤0.33°F)
  • ≥10,000 seconds (CR ≥0.33°F)
